FRDM Expansion Board for the MPC17529

FRDM-17529EVB
Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

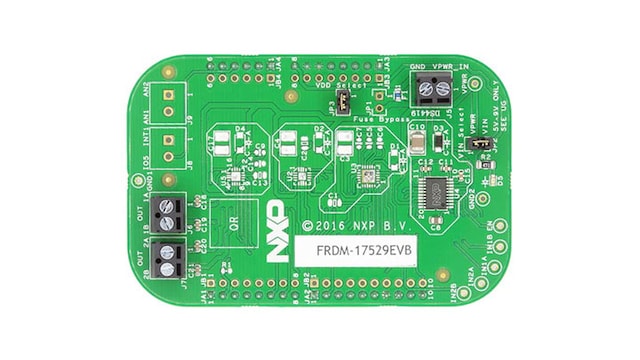

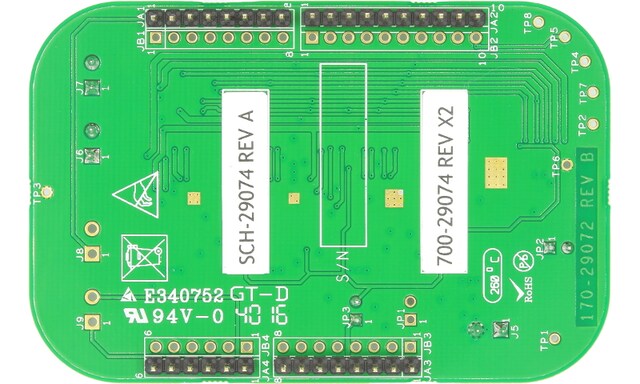

This FRDM evaluation board features the MPC17529 two-channel H-Bridge driver which can drive single-stepper motor or two-brushed DC motors.

  • Offers independent control of each H-Bridge via MCU interface
  • Features built-in shoot-through current protection and an undervoltage shutdown function
  • Efficiently drives many types of micromotors with low power dissipation
  • Saves design time
  • Reduces system costs
  • Reduces board space - enables compact, small designs
  • Reduces parts count
  • Processor Expert® component for low voltage H-Bridge products enables rapid embedded application development.

Product Details

Features

Connectivity

  • Screw terminals for motor leads and power connections

Power Management

  • Fuse protected
  • Built in regulator for logic power supply
  • Board power is separate from host CPU power

User Components

  • General-purpose LED driven from FRDM-KL25Z

General Specifications

  • Designed for use with FRDM-KL25Z (can be used with FRDM and Arduino®)
