Freedom Development Platform for NXP Sensors with Bluetooth®

FRDM-FXS-MULTI-B Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

This board is no longer in production. The FRDM-FXS-MULT2-B is available for order. Alternative ordering options include: FRDM-STBC-AGM01 , FRDM-K64F-AGM01 and FRDM-K22F-AGM01. For additional information, please contact NXP® Sales and Marketing.

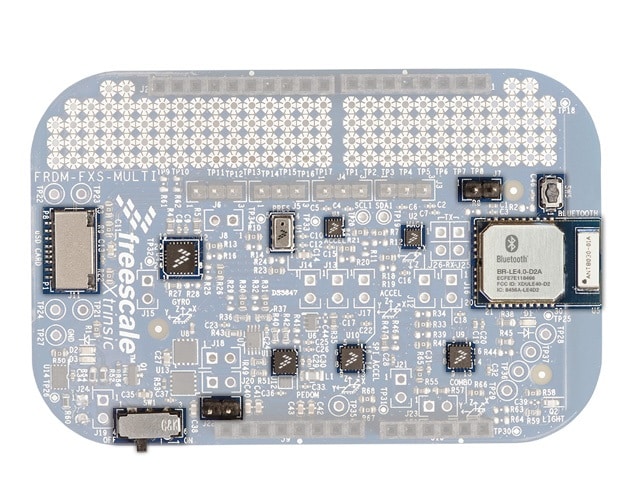

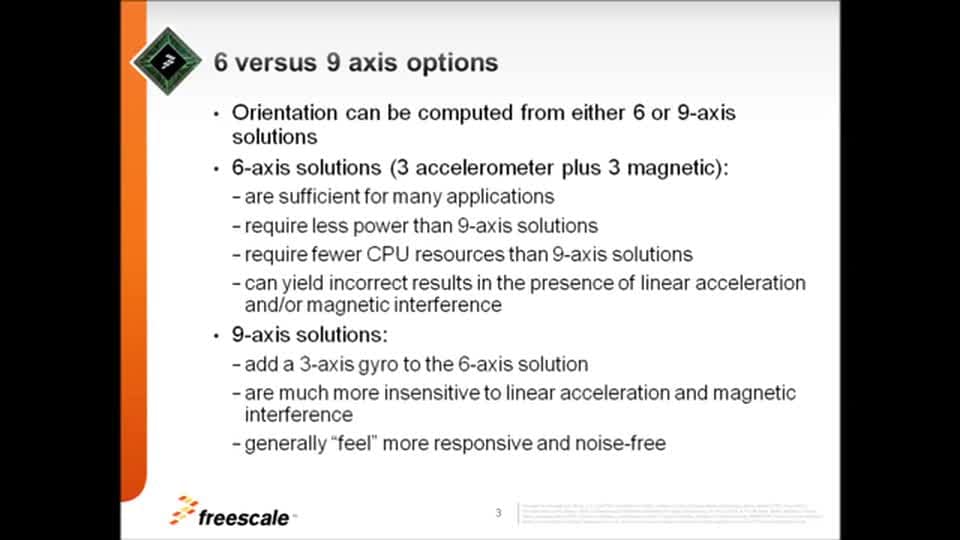

The FRDM-FXS-MULTI-B is a sensor expansion board for the MMA8652FC accelerometer, MAG3110 3-axis magnetometer, MPL3115A2 pressure sensor, FXOS8700CQ 6-axis sensor, MMA955xL sensing platform and the FXAS21000 gyroscope (superseded by FXAS21002C). The FRDM-FXS-MULTI-B is the first of its kind, offering 12-axis sensing, wireless with Bluetooth and the compatible Android™ app, the NXP Sensor Fusion Toolbox.

Devices on the Board

  • FXLS8471Q: ±2g/±4g/±8g, Low g, 14-Bit Digital Accelerometer
  • MMA8652FC: ±2g/±4g/±8g, Low g, 12-Bit Digital Accelerometer
  • FXOS8700CQ: Digital Sensor - 3D Accelerometer (±2g/±4g/±8g) + 3D Magnetometer
  • MAG3110: NXP High Accuracy, 3D Magnetometer
  • MMA955xL: NXP Motion Sensing Platform
  • MPL3115A2: 50 to 110kPa, Absolute Digital Pressure Sensor
  • FXAS21000: NXP 3-Axis Digital Gyroscope (superseded by FXAS21002C)
