General Purpose Low-Noise Amplifier with Bypass Switch

MC13852 No Longer Manufactured

Roll over image to zoom in

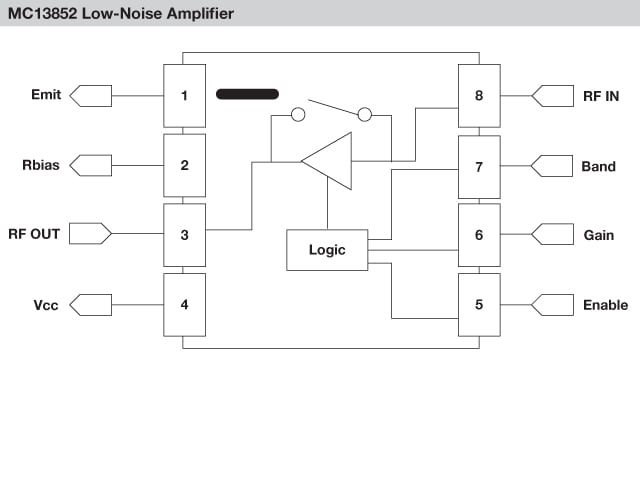

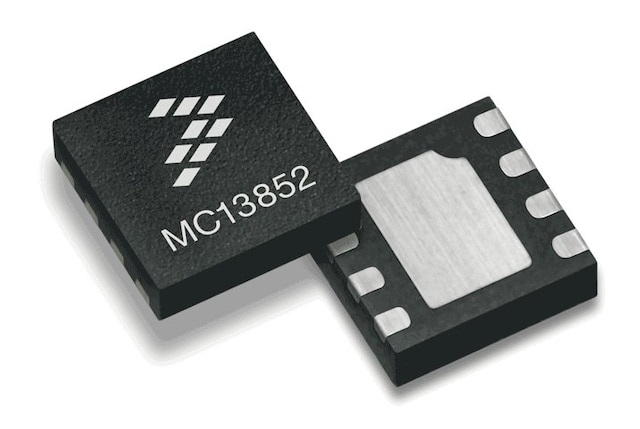

The MC13852 is a cost-effective, high IP3 low-noise amplifier (LNA) with low noise figure. This is the lower application frequency version of the MC13851. An integrated bypass switch is included to preserve high input intercept performance in variable signal strength environments and boosts dynamic range. On-chip bias circuitry offers low system cost. The input and output match are external to allow maximum design flexibility. External resistor used to set device current enables balancing required linearity with low current consumption. Gain is optimized for applications >1000 MHz. The MC13852 is fabricated with Our advanced RF BiCMOS process using the eSiGe:C module and is available in the 2x2 mm MLPD-8 leadless package, offering a small, low height, easy-to-solder solution for applications with tight printed circuit board placement requirements.
