TFF1014HN

TFF1014HN: Integrated mixer oscillator PLL for satellite LNB ARCHIVED

Overview

Archived content is no longer updated and is made available for historical reference only.

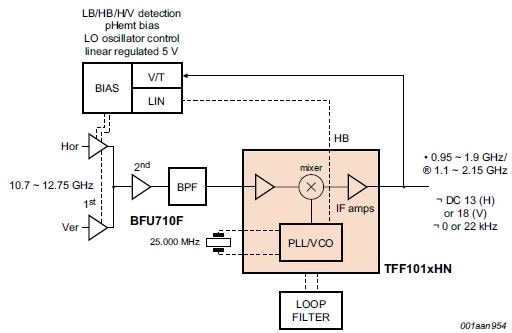

The TFF1014HN/N1 is an integrated down-converter for use in Low Noise Block (LNB) converters in a 10.7 GHz to 12.75 GHz K_u band satellite receiver system.

Features

Low current integrated pre/buffer amplifier, mixer, and PLL synthesizer
Flat gain over frequency
Single 5 V supply pin
Low cost 25 MHz crystal
Crystal controlled LO frequency generation
Switched LO frequency (9.75 GHz and 10.6 GHz)
Low phase noise
Low spurious
Low external component count
Alignment-free concept
ESD protection on all pins

Target Applications

K_u band LNB converters for digital satellite reception (DVB-S)
K_u band LNB converters for digital satellite reception (DVB-S2)

Features

Low current integrated pre/buffer amplifier, mixer, and PLL synthesizer
Flat gain over frequency
Single 5 V supply pin
Low cost 25 MHz crystal
Crystal controlled LO frequency generation
Switched LO frequency (9.75 GHz and 10.6 GHz)
Low phase noise
Low spurious
Low external component count
Alignment-free concept
ESD protection on all pins

Target Applications

K_u band LNB converters for digital satellite reception (DVB-S)
K_u band LNB converters for digital satellite reception (DVB-S2)
