ISF-DATA-LOGGING-SW: ISF for Generic Data Logging Applications ARCHIVED

Overview

Features

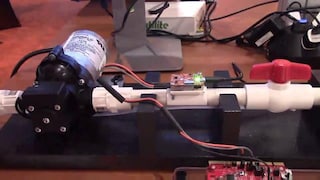

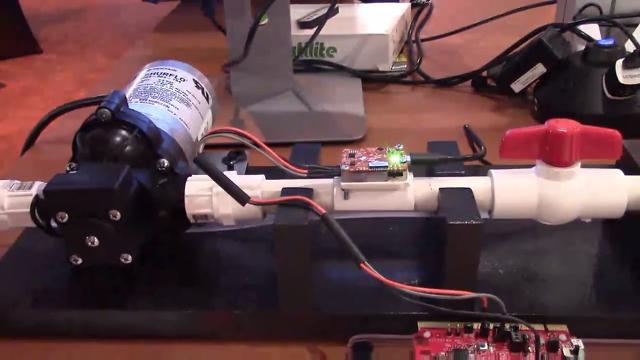

Systems/Algorithims Engineering Sensor Data

Systems/Algorithims Engineering Sensor Data thumbnail

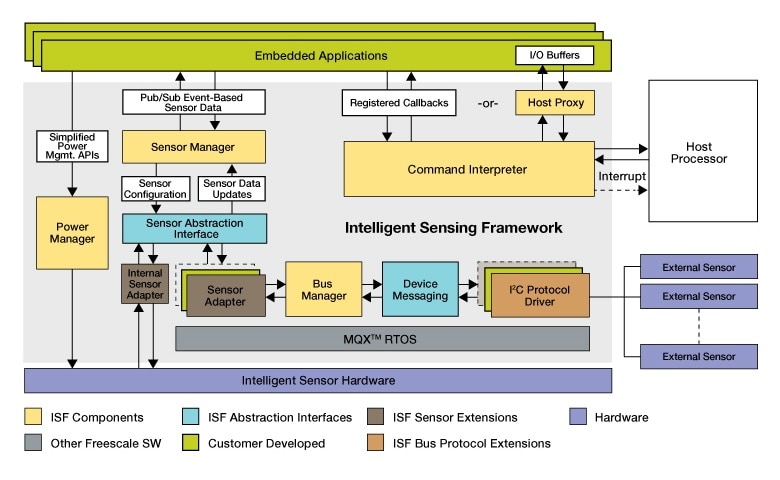

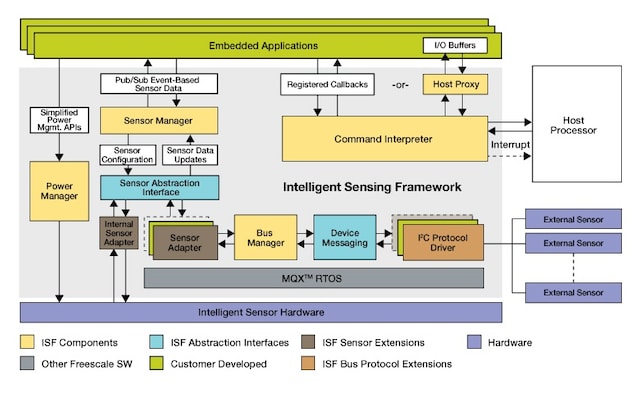

Block Diagram

Block Diagram

RD-KL25-AGMP01 Data Collection Board Block Diagram

RD-KL25-AGMP01 Data Collection Board  Block Diagram

RD-KL25-AGMP01 Data Collection Board

RD-KL25-AGMP01 Data Collection Board


Supported Devices

Kinetis - Cortex M0+, Cortex M4, Cortex M4F
  • Accelerometers
    • FXOS8700CQ: Digital Sensor 3D Accelerometer (± 2g/± 4g/± 8g) + 3D Magnetometer
  • Gyroscope
  • Magnetometer
    • FXOS8700CQ: Digital Sensor 3D Accelerometer (± 2g/± 4g/± 8g) + 3D Magnetometer
  • Pressure
    • MPL3115A2: 50 to 110 kPa, Absolute Digital Pressure Sensor
  • RD-KL25-AGMP01,also known as the Data Collection or Data Logging Board is the only Board supported by this version of ISF.
