LIN 2.1 / SAEJ2602-2 Dual LIN Physical Layer

MC33663
No Longer Manufactured

  • MC33663 is not recommended for new designs. NXP® recommends TJA1022 be used in any new designs.

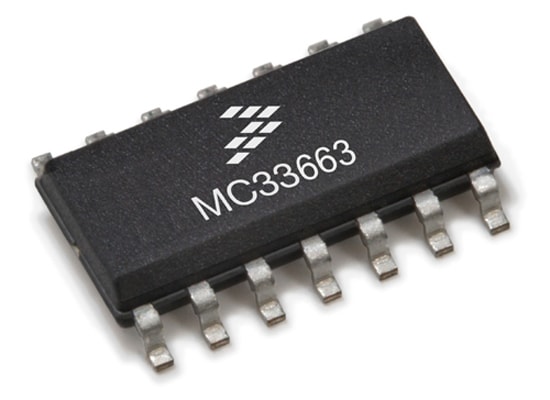

Roll over image to zoom in

The NXP MC33663 product line integrates two physical layers LIN buses dedicated to automotive LIN sub-bus applications.

  • The MC33663LEF and MC33663SEF devices offer normal baud rate (20kbps) and the MC33663JEF slow baud rate (10 kbps)
  • All devices integrate fast baud rate (above 100kbps) for test and programming modes
  • Excellent electromagnetic compatibility (EMC) and radiated emission performance, electrostatic discharge (ESD) robustness and safe behavior, in the event of LIN bus short-to-ground or LIN bus leakage during low-power mode

View internal diagram
