OM13067: LPC1549 Motor Control Kit (Permanent Magnet/Teknic Motor) ARCHIVED

Overview

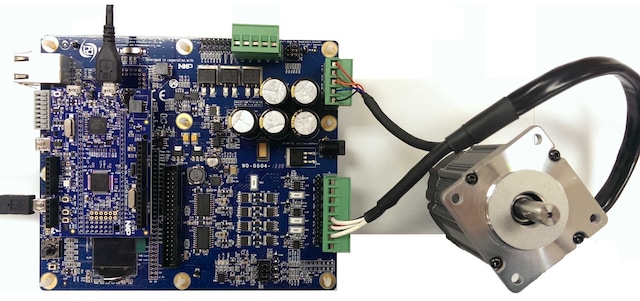

LPC1549 Motor Control Kit (Permanent Magnet / Teknic Motor)

Specifications

Technical and Functional Specifications

  • The LPC1549 Arm Cortex-M3 based microcontroller
  • 256 kB of flash memory, 32 kB of ROM, 4 kB EEPROM, and up to 36 kB of SRAM
  • Expansion connector for control by LPC1800/LPC4000/LPC2900 families, or other 4 phases (based on NXP® PSMN2R6-40YS N-channel MOSFET), accessed via screw terminals
  • Phase control support 100% duty cycle
  • Voltage measurement (on three phases and virtual ground)
  • Current measurement (in-phase on three phases and common low-side)
  • Input current measurement, including over-current trip
  • Break functionality
  • Hall & QEI sensor inputs, connected via screw terminals
  • Temperature sensor
  • 12-30 V input voltage, 17 A max current (max 300 W output)
  • On-board 15 W power supply (+11 V, +5 V, +3.3 V)
  • USB interface (must be supported by controlled MCU)
  • Ethernet interface (must be supported by controlled MCU)
  • CAN interface (must be supported by controlled MCU)
  • RS422/485 interface
  • UART-to-USB interface
  • 5-key joystick switch
  • 96 x 64 pixel OLED
  • Reset pushbutton
  • I²C-EEPROM
  • SWD/JTAG connector
  • 2.1 mm input jack, or via screw terminals
  • 12-30 V, 17 A max

Supported Devices

Processors and Microcontrollers

LPC1500 Cortex-M3
  • LPC1549JBD48 : Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
