Join our teamOM13021: LPCXpresso board for LPC11U14 ARCHIVED

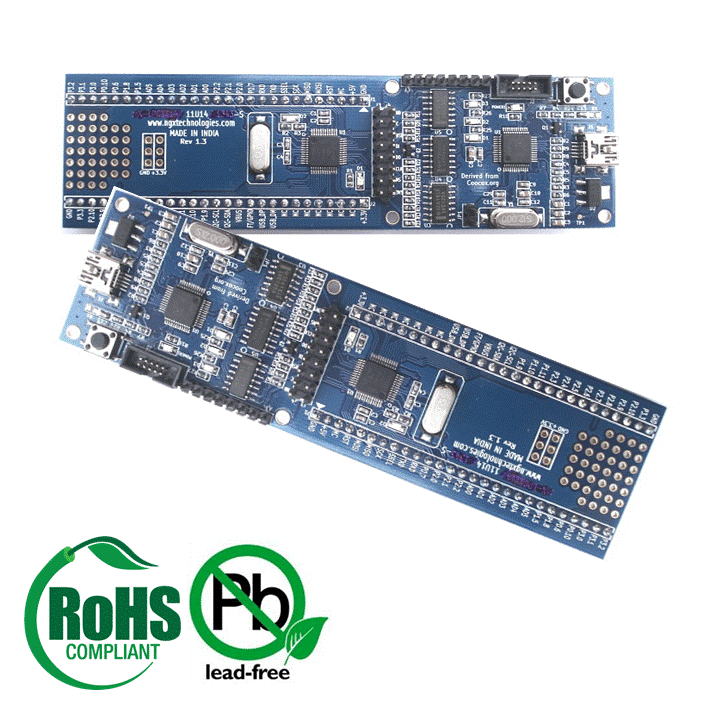

NGX LPC11U14 Eval Board PIC
Specifications
Technical and Functional Specifications
- Two layer PCB (FR-4 material)
- On-board Test Led
- 12 MHz crystal
- On board debugger
- No power supply required, powered through USB
Documents and Software
Design Resources
Design Tools & Files ( 2 )
Printed Circuit Boards and Schematics ( 1 )
-
NGX LPC11U14 Eval Board Schematic (REV 1.0 )
Design Files - miscellaneous ( 1 )
-
NGX LPC11U14 Eval Board UserManual (REV 1.0 )
Software
Embedded Software ( 2 )
BSP, Drivers and Middleware ( 2 )
-
LPCOpen Software Development Platform LPC11XX
LPCOpen Software Development Platform (LLPC11XX packages),
-
NGX LPC11U14 Eval Board SampleCode (REV 1.0 )
Development Software ( 1 )
IDE and Build Tools ( 1 )
-
LPCXpresso IDE v8.2.2
The popular Free Edition has been enhanced to include many features previously only available in the premium Red Suite product, including C++ support, and its download limit has been doubled to 256kb. The Pro Edition of LPCXpresso gives developers unlimited code size downloads and one year of email-based support provided directly by NXP engineers. Note that LPCXpresso IDE has been replaced by MCUXpresso IDE.
