Archived content is no longer updated and is made available for historical reference only.

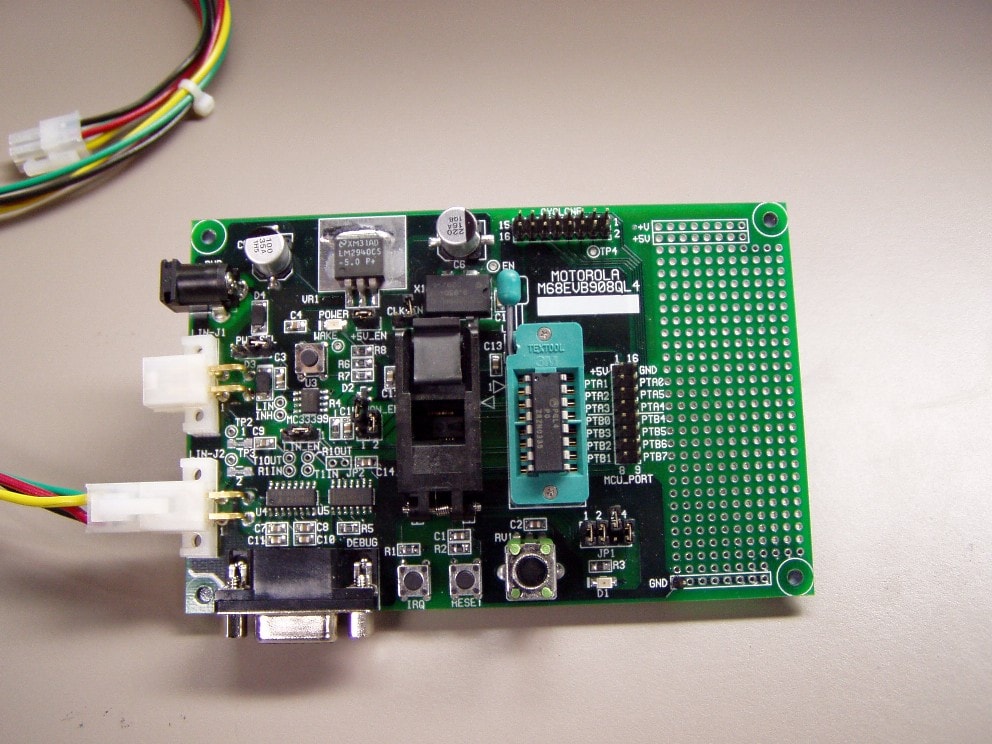

NXP®’s advanced MC68HC908QL4 evaluation board, M68EVB908QL4, contains everything a designer needs to develop and evaluate the MC68HC908QL4 family applications. This comprehensive kit includes an evaluation board that uses the MC68HC908QL4 on chip slave LIN interface controller (SLIC) module.
The M68EVB908QL4 evaluation board is centered around the MC68HC908QL4 MCU and the enhanced LIN interface. The enhanced LIN interface consists of an MC33661 enhanced LIN transceiver and a 5-V regulator (an LT1121 chip). The board can be programmed either using the RS-232 MON08 interface or a Cyclone/MultiLink tool.
To order your M68EVB908QL4 evaluation board, please click the orange “BUY” button in the ‘Orderable Parts Information’ section located at the bottom of the page. Alternatively you may purchase the board from your local NXP distributor. For a listing of NXP distributors, please follow the "Where To Buy" link at the top of this page.
Processor
|
MC68HC908QL4 CPU
|
Connectivity
|
|
Power Management
|
Regulated 5 V power supply |
Size | Large 1” x 3” Prototype Area |
User Components |
|
9.8304 MHz clock oscillator |
This application note describes three versions of a slave LIN driver developed for the slave LIN interface controller (SLIC) module on the MC68HC908QL4 (QL4) microcontroller unit (MCU). The slave driver comes with the Motorola QL4 LIN kit evaluation board, which also contains AN2573/D: LINkits LIN Evaluating Boards, which demonstrates the functionality of the driver.
This manual describes getting started with the M68EVB908QL4 demonstration board.
