MC9S08QE8Demonstration Board | NXP Semiconductors

Overview

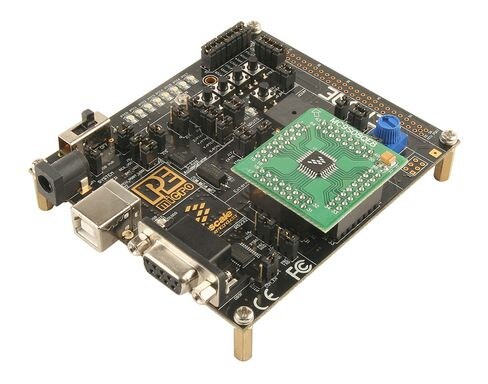

The DEMO9S08QE8 is a cost-effective board for quick MCU evaluation.

The DEMO9S08QE8 kit includes:

DEMOQE baseboard
DC9S08QE8 daughter card

In combination, they can be used to highlight the key features on the MC9S08QE8 device. The board also includes a power terminal to measure the ultra-low power consumption of the MC9S08QE8 device.

MoreLess

Specifications

Technical and Functional Specifications

Base board features	3-axis Accelerometer w/ Enable 8 LEDS w/ enable 4 User Push Buttons w/ Enable 1 Piezzo Buzzer w/ Enable 1 RS-232 Serial Port w/ DB9-F Connector 10K Ohm POT w/ Enable ON/OFF Power Switch w/ LED indicator RESET Push Button and LED indicator w/ Enable Power options: 5 VDC to 12 VDC Power Jack (2.5/5.5 mm barrel connector) USB Cable: 5 VDC, 500 mA max 2 AAA Battery Cells Selectable (regulated VDD Output at 3.0 V or 2.1 V) P&E micro Embedded Multilink USB Connector USB to SCI communication interface eliminates need for serial COM port on PC Two channel logic analyzer allows observation of MCU signals
DC9S08QE8 Daughter Card features	An MC9S08QE8CLC chip Four 8x2 female connectors to mate with DEMOQE8 base board, also compatible with the DEMOQE128 kit Can be bought separately
	Additional interchangeable 8-bit S08 and 32-bit ColdFire^® V1 QE family daughter cards are available. All daughter cards are compatible in both DEMOQE8 and DEMOQE128 boards

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

S08QE : 8-bit Flexis QE MCUs

MoreLess

Documents and Software

Software ( 1 )

Development Software ( 1 )
- IDE and Build Tools ( 1 )

Documents

User Guide ( 2 )

DEMOQE8 User Manual
- PDF
- Rev 1.01
- Oct 27, 2009
- 2.3 MB
- DEMO9S08QE8UM
- English
DEMOQE8 quick start guide
- PDF
- Rev 2
- Jun 18, 2009
- 173.5 KB
- QE8QE4QSG
- English

Supporting Information ( 7 )

DEMOQUE8 Schematic
- PDF
- Rev B
- Jan 17, 2008
- 72.9 KB
- DEMOQEBSCH
- English
DEMOQE8 Board Component Placement
- PDF
- Rev B
- Jan 17, 2008
- 204.2 KB
- DEMOQEBCOMPP
- English
DEMOQE8 Board Component List
- PDF
- Rev B
- Jan 17, 2008
- 15.5 KB
- DEMOQEBCOMPL
- English
Low Power Labs
- PDF
- Rev 1
- Feb 22, 2008
- 1.2 MB
- QE8QE4LABSSHEET
- English
DEMO9S08QE8 Daughter Card Component list
- PDF
- Rev B
- Jan 17, 2008
- 5.0 KB
- DEMO9S08QE8DCCL
- English
DEMO9S08QE8 Daughter Card Component Placement
- PDF
- Rev B
- Jan 17, 2008
- 15.7 KB
- DEMO9S08QE8DCCP
- English
DEMO9S08QE8 Daughter Card Schematic
- PDF
- Rev B
- Jan 17, 2008
- 13.4 KB
- DEMO9S08QE8DCSCH
- English

Software

Development Software ( 1 )

IDE and Build Tools ( 1 )

CodeWarrior^® for Microcontrollers (Classic IDE) - RS08/HC(S)08, ColdFire V1 v6.3

NXP's CodeWarrior Development Studio for Microcontrollers v6.3 is a single, integrated tool suite designed to get you on the design fast track with RS08, S08 and ColdFire V1 members of the NXP Controller Continuum.

Buy Options

DEMOQE8: MC9S08QE8Demonstration Board ARCHIVED
