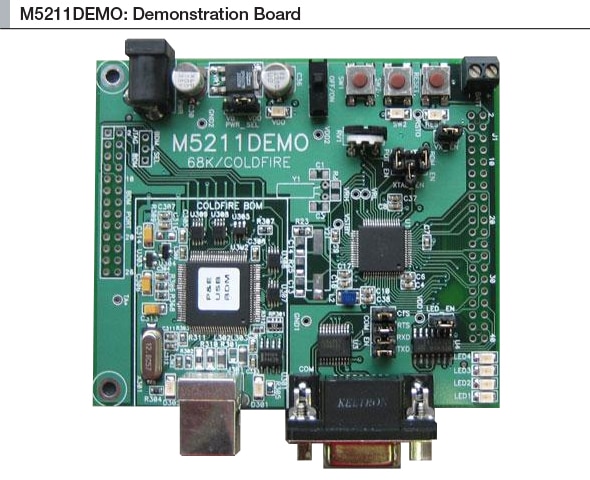

M5211DEMO: MCF5211 Demonstration Board ARCHIVED

Overview

Archived content is no longer updated and is made available for historical reference only.

Development with the ColdFire^® family of microcontrollers has never been easier or more cost-efficient than with the M5211DEMO kit. The M5211DEMO single board computer is a fully assembled, fully functional development board for the NXP^® MCF5211 microcontroller. An included serial cable, USB cable, and support software will allow the user to get started quickly. The low-cost development kit comes fully equipped with the low-cost, efficient, and powerful MCF5211 microcontroller as well as useful output utilities such as a potentiometer and Analog-to-Digital Converter utility for application demonstration. Demonstrating easy to get, easy to use ColdFire development support, the M5211DEMO is a low cost development system for the NXP MCF521x ColdFire microcontroller family.

This cost-efficient evaluation kit offers impressive additions with a fully licensed, complimentary Special Edition of the CodeWarrior^® Development Studio for ColdFire Architectures for development of applications up to 128Kbytes code size, as well as a host of ther low cost and professional tools from leading 3rd party tool vendors.

See the MCF521X product page for more information on the processor differences and how to evaluate each microcontroller using the M5211DEMO.

MoreLess

Specifications

Technical and Functional Specifications

Microcontroller	MCF5211 CPU, 64 pins ColdFire^® V2 Core
Memory	128 Byte Flash, 16K Byte Ram
Connectivity	DB9 Serial Connector Type B USB connector Edge / Interrupt Port MAC Module and HW Divide
Power Management	Low-power optimization 3.3 V operation Power Input: +5 - +20 VDC, 9 VDC typical Power Input Select Current Consumption: 100 ma typical @ 9 VDC input
User Components	5k ohm POT w/ enable jumper Option Jumpers
Timers	8 PWM timers 4 GPT Timers DMA Controller w/ Timers Interrupt Controller
	Temperature range: -40 ºC to +85 ºC Up to 63 Dhrystone 2.1 MIPS @ 66 MHz 8 Channel 12 Bits analog-to-digital

Documents and Software

Documents ( 1 )

Reference Manual ( 1 )

Documents

Reference Manual ( 1 )

Demonstration Board for NXP^® MCF5211^{(REV
1
)}

Reference manual for the M5211DEMO.
- PDF
- 227.1 kB
- 27 Apr 2007
- M5211DEMO
- [ English ]
