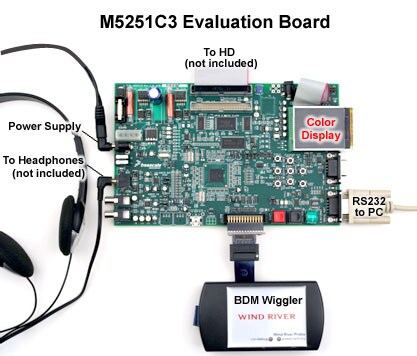

MCF5251 WR Evaluation Board

  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

Product Details

Features

Microcontroller

    M5251C3 Single Board Computer

  • USB 2.0 HS OTG
  • ATA/IDE Connector for HDD Drive/CD-DA/MP3 CD
  • CAN and Serial Ports
  • SmartMedia Interface
  • Keypad
  • Audio Jack
  • and more...

Connectivity

  • RS232 communication cable
  • Wind River Probe USB

Power Management

  • Sceptre 9.0 Volt 2.7 A universal power supply

Display

  • Veritronix Color Display

User Components

    CD Content

  • M5251C3 User's Manual
  • MCF5251UM ColdFire Integrated Microprocessor User Manual
  • ColdFire Programmers Reference Manual
  • CF Flasher Tool
  • TRIO HDD Demonstration Code
  • dBUG Firmware
