Mini or Micro-USB Interface IC

  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

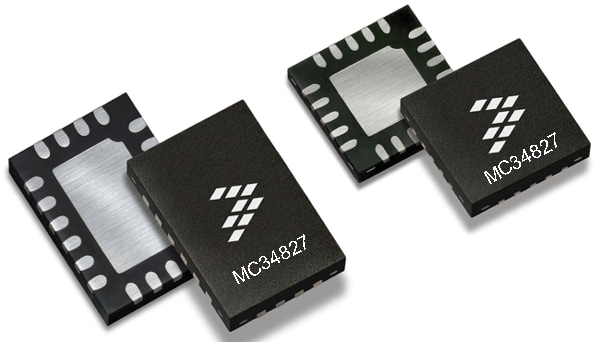

See product image

Product Details

Block Diagram

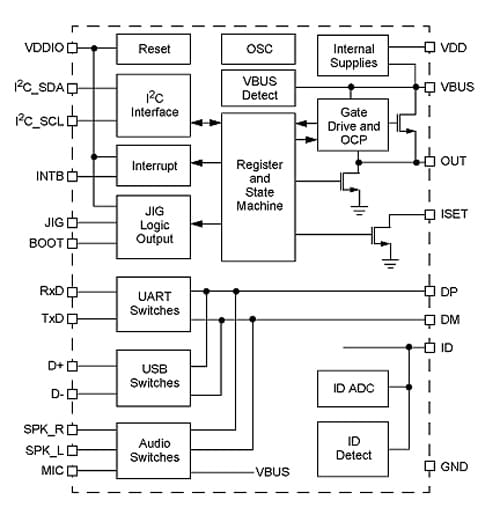

MC34827 Block Diagram

graphics

Features

Key Features

  • Automatically Identifies the Power Supply Type and Sets One of Two Battery-Charge-Current Levels
  • Internal Power Switch Protects the Phone System against 28V Power Supply Input
  • Supports Stereo/mono Headset with or without Micro Phone and Remote Control
  • Supports USB or UART Test and R/D cables
  • High-Speed USB2.0 Compliant
  • Supports 32 ID resistance values with a High-Accuracy 5-bit ADC
  • I2C Interface with Interrupt to the Host
  • 10μA Quiescent Current in Standby Mode
