PCA8539 Demo Board

OM13503 End of Life
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

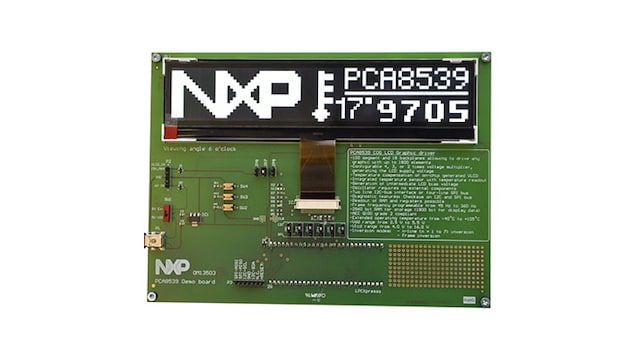

The OM13503 is an LCD demo board which can be used to demonstrate and evaluate the PCA8539 dot-matrix driver. This is a Chip-On-Glass LCD driver which can drive a dot matrix up to 100 × 18 dots with a display size of up to 7".

The board is controlled by an LPCXpresso microcontroller board, which contains the LPC1115, a Cortex M0 controller. A free IDE can be downloaded in order to modify the software. Supply of the board can be done via an AC adapter or USB connector.

The 12NC of the OM13503 board is 9353 031 21598.

Product Details

Features

Microcontroller

  • Plugged in OM13035 LPCXpresso board with LPC1115 microcontroller

Power Management

  • Power supply can be done either via USB or an external power supply. This can also be used for an external VLCD

Display

  • Demonstrates PCA8539 LCD driver
  • Features a vertical alignment (VA) COG display module with integrated backlight

User Components

  • 3 push buttons
  • User modifiable firmware, In-System / In-Application Programming (ISP / IAP) via USB

Buy Options

OM13503-Image

Click to expand

  • OM13503
    End of Life

  • PCA8539 demoboard.

  • For a quantity of 1
