PCA8885/PCF8885 TFT touch demoboard

OM11058
No Longer Manufactured
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

Archived content is no longer updated and is made available for historical reference only.

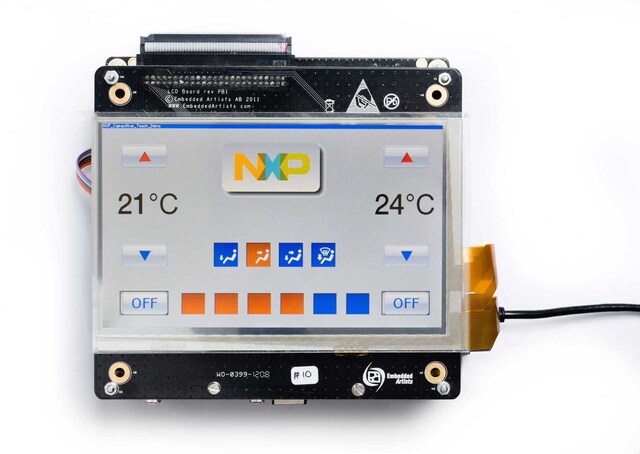

The OM11058 demonstrates the capabilities of the PCA8885 and PCF8885 for touch on display by using a double-sided ITO touch foil with a diamond matrix and two ICs cascaded for an 8x8 resolution on a 7 inch TFT display.

Product Details

Supported Devices

Products

mWallet 2GO

  • PCA8885TS: Capacitive 8-channel touch and proximity sensor with auto-calibration and very low power consumption
  • PCF8885T: Capacitive 8-channel touch and proximity sensor with auto-calibration and very low power consumption
