PXR40: Power Architecture MCU, 264 MHz, 4 MB On-Chip Flash, Quad ADCs ARCHIVED

Overview

The PXR40 32-bit Power Architecture® microcontroller family with integrated analog and processing power, offers industrial users a reliable, robust controller to meet a variety of timing critical application needs, such as motion/motor control, without sacrificing performance while doing complex operations.

The PXR40 Power Architecture MCU provides strong computing power with its 264 MHz clock speed and on-chip digital signal processing. Coupled with 4 MB of on-chip flash, quad ADCs, 64-channel dual timing unit and 256K RAM (for data storage), the designer has significant on-chip features to reduce external components.

The combination of performance, advanced signal processing capabilities and ultra-large flash memory array offered in the PXR40 Power Architecture MCU helps address the growing computational and timing demands within the industrial markets.

Archived content is no longer updated and is made available for historical reference only.

MoreLess

Features

e200z7 CPU at 264 MHz with integrated DSP capability provides the necessary computational performance for timing dependent applications
SIMD module for DSP and floating point operations
Variable length encoding (VLE)
4 MB flash memory with ECC
256K SRAM with ECC
64-channel dual programmable timing controller
64-channel 12-bit quad analog-to-digital converter (ADC)
Robust communication capabilities: 4x CAN, 3x UART, 4x SPI ports

MoreLess

Features

e200z7 CPU at 264 MHz with integrated DSP capability provides the necessary computational performance for timing dependent applications
SIMD module for DSP and floating point operations
Variable length encoding (VLE)
4 MB flash memory with ECC
256K SRAM with ECC
64-channel dual programmable timing controller
64-channel 12-bit quad analog-to-digital converter (ADC)
Robust communication capabilities: 4x CAN, 3x UART, 4x SPI ports

Data Sheets

Application Notes

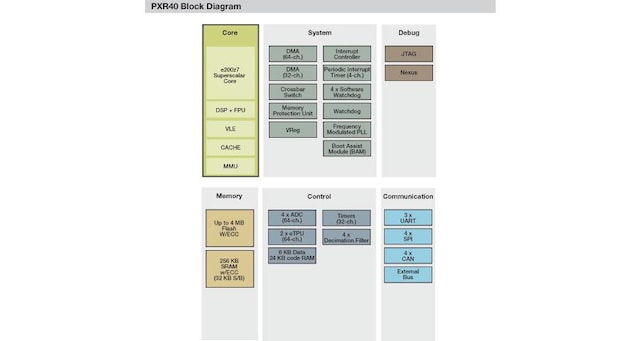

PXR40 Microcontroller Block Diagram

PXR40 Microcontroller Block Diagram

PXR40 Microcontroller Block Diagram
