No Longer Manufactured

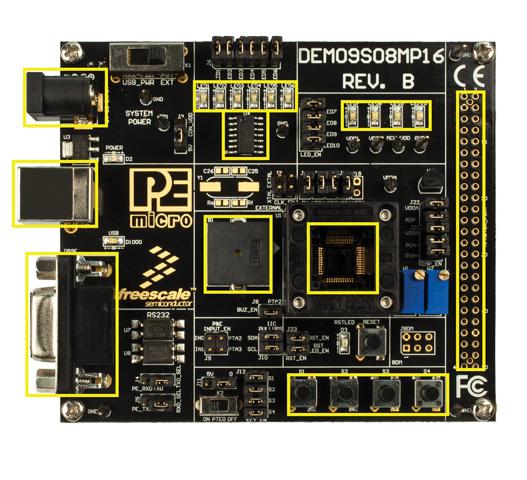

S08MP16 Demo Board

DEMO9S08MP16: S08MP16 Demonstration Board ARCHIVED

Overview

Archived content is no longer updated and is made available for historical reference only.

The DEMO9S08MP16 is a low-cost development system supporting MC9S08MP16 MCUs.

P&E’s Embedded Multilink circuitry on the DEMO9S08MP16 board allows the on-board processor connected to the DEMO9S08MP16 to be debugged and programmed via USB from a PC
The demo board can be powered using the USB bus

DEMO9S08MP16 Block Diagram

Specifications

Technical and Functional Specifications

Microcontroller	MC9S08MP16VLF (48LQFP)
Connectivity	Virtual serial port
Power Management	6-volt DC power supply input barrel connector Power input selection jumpers for selecting the input voltage source 5 V from Embedded Multilink or LDO regulator Power from APMOTOR port, which might be 5 V or 3.3 V RESET push button and LED indicator w/ enable
	Logic analyzer Embedded Multilink circuitry populated on the underside SCI signals connected to P&E’s Embedded Multilink through jumpers

Documents and Software

Documents ( 2 )

User Guide ( 2 )

Documents

User Guide ( 2 )

DEMO9S08MP16 Quick Start Guide^{(REV
0
)}
- PDF
- 4.0 MB
- 10 Jan 2009
- MP16S08MP16QSG
- [ English ]
DEMO9S08MP16 User Manual ^{(REV
1
)}
- PDF
- 874.0 kB
- 09 Sep 2009
- DEMO9S08MP16UM
- [ English ]
