S32G2 Vehicle Networking Reference Design

S32G-VNP-RDB
  • Archived
  • Archived content is no longer updated and is made available for historical reference only.

Roll over image to zoom in

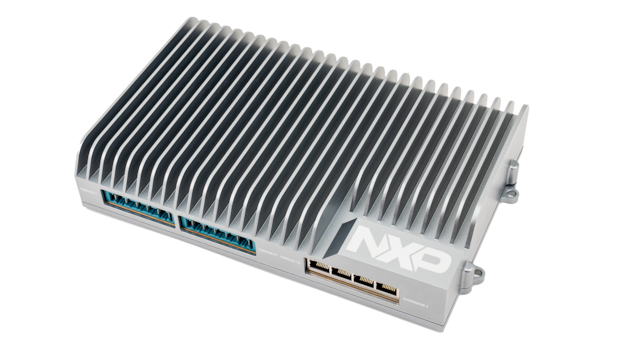

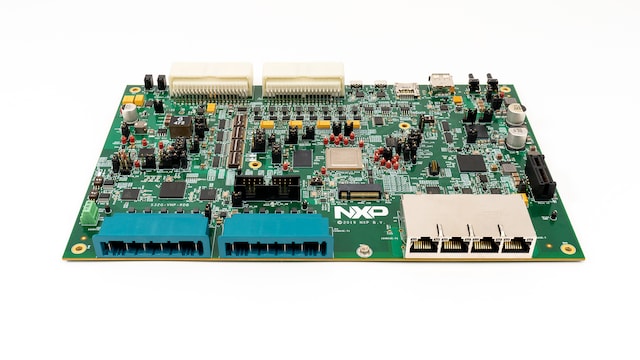

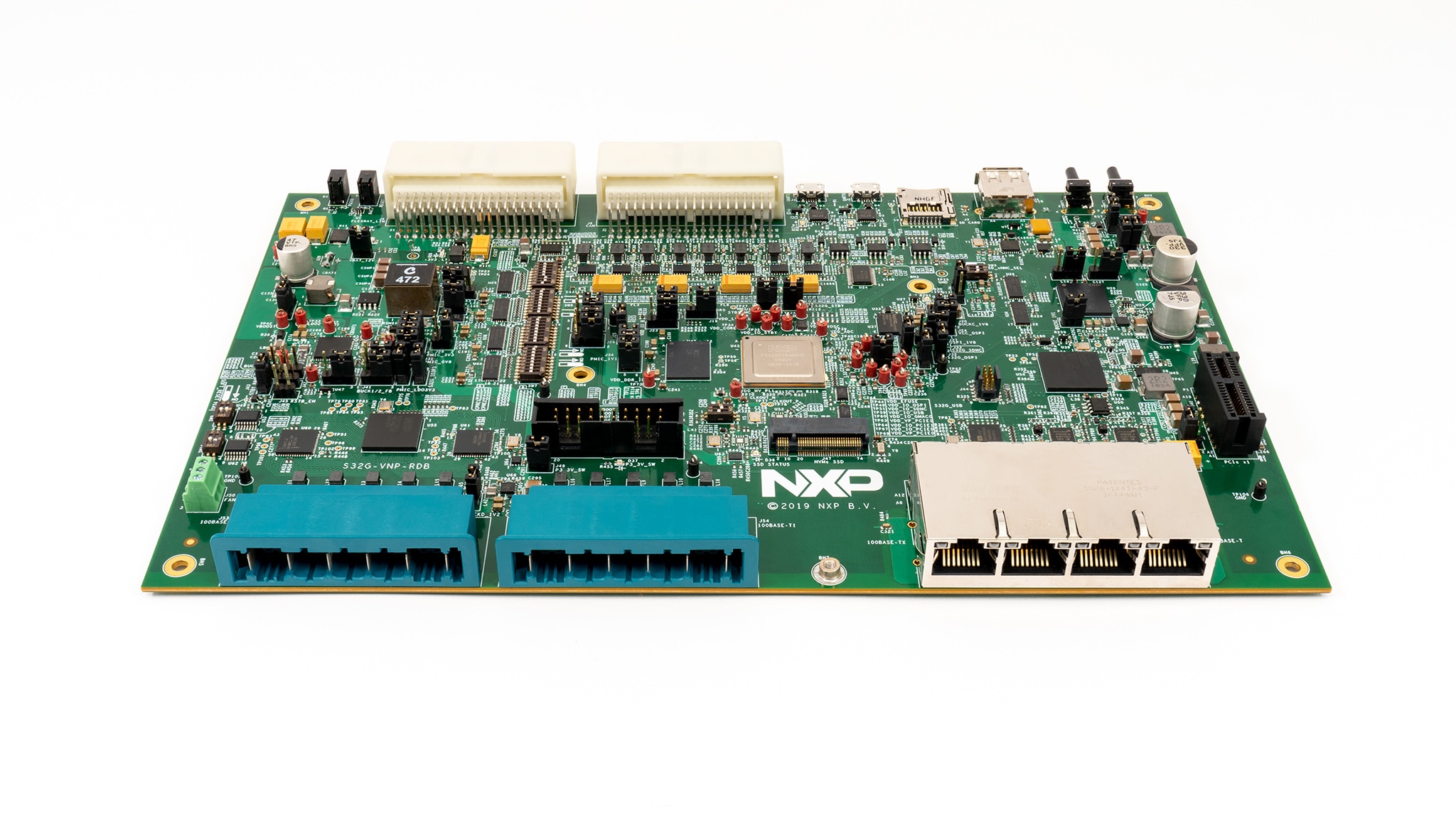

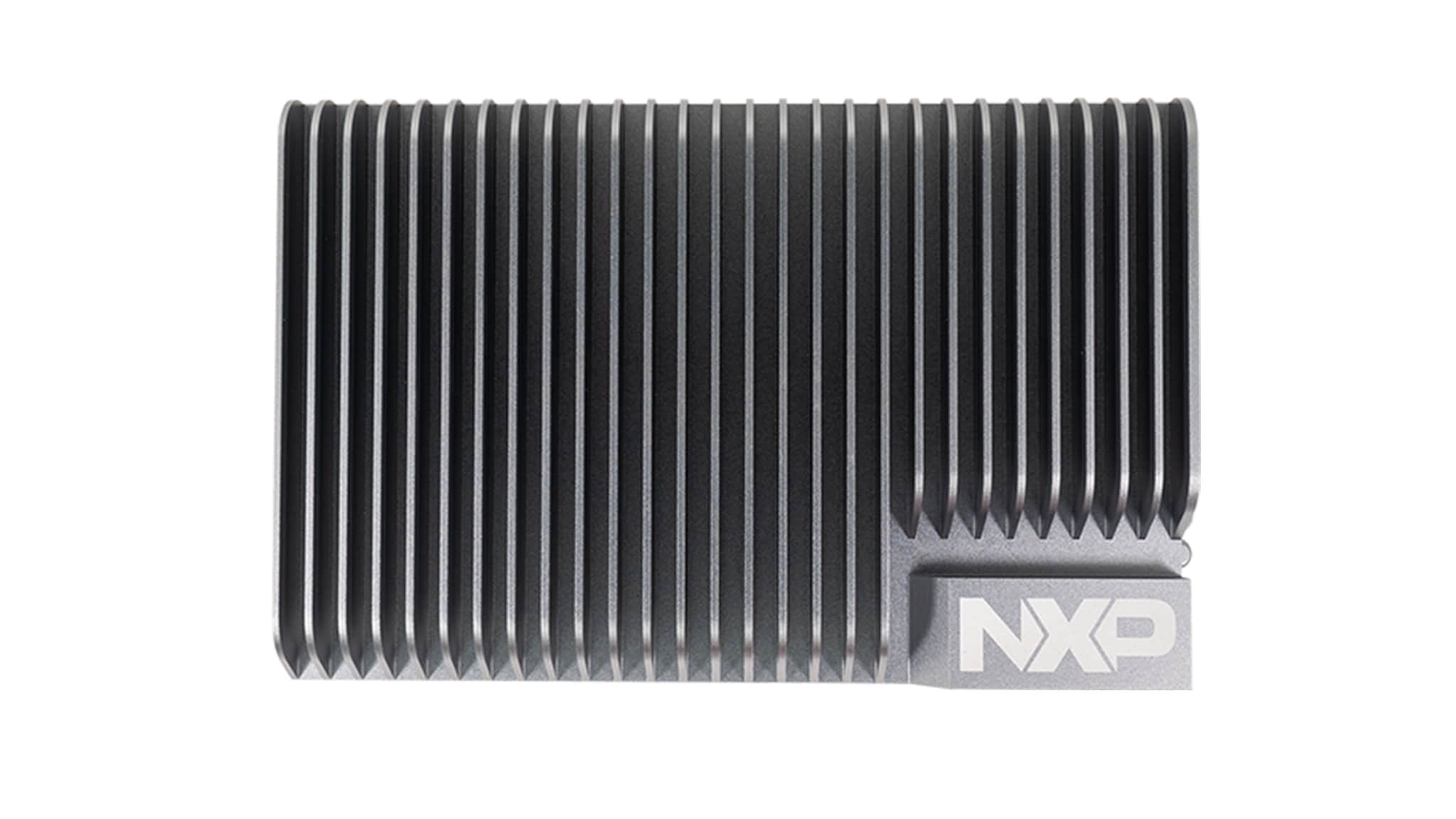

The S32G-VNP-RDB is an evaluation and development board engineered for developing Vehicle Network Processing applications, such as service-oriented gateways.

Based on quad Arm® Cortex®-A53 cores and triple, dual-core lockstep Arm Cortex-M7 cores, the S32G-VNP-RDB offers a combination of automotive and enterprise networking technology with a wealth of interfaces (CAN/LIN/FlexRay/Ethernet) for vehicle networks, in addition to substantial safe compute performance. The S32G-VNP-RDB includes peripheral devices with PCI Express and USB interfaces that can be leveraged by OEMs, Tier 1s, and software ecosystem partners to shorten time to market.

S32G Vehicle Network Processing Reference Design – Fact Sheet

Product Details

Select a section:

Block Diagram

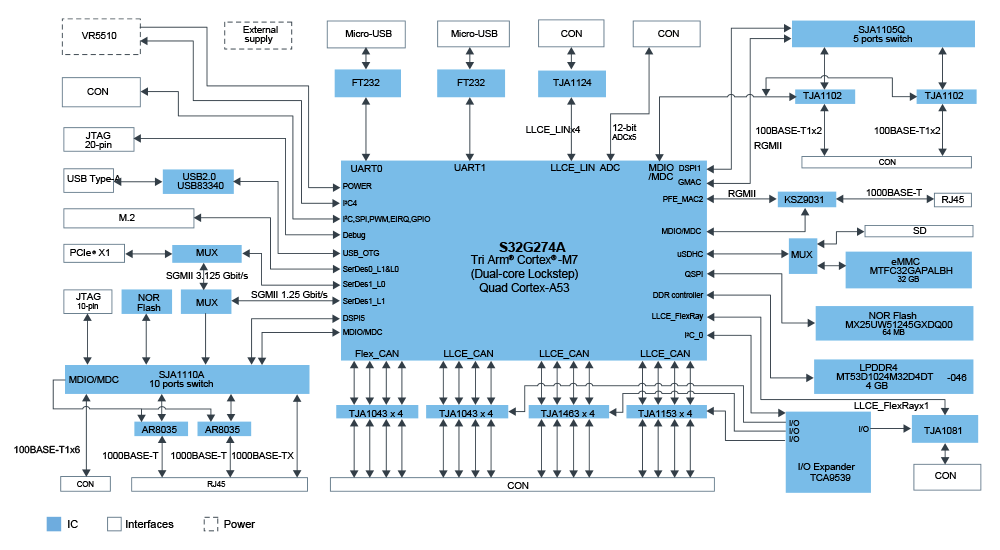

S32G-VNP-RDB system architecture

S32G-VNP-RDB system architecture
Get diagram PDF

Supported Devices

Power Management

Safety SBCs

  • VR5510: Multi-Channel (9) PMIC for S32G Processor – 8 High Power, 1 Low Power, Fit for ASIL D Safety Level

Peripherals and Logic

Voltage Level Translators

  • NTS0102: Dual-Supply Translating Transceiver (Open-Drain, Auto-Direction Sensing)

Interfaces

FlexRay Transceivers

  • TJA1081B: FlexRay™ Node Transceiver - Clamp 30

Automotive Ethernet PHYs

3.3 V / 5 V IO CAN Transceivers

  • TJA1043: High-Speed CAN Transceiver with Standby and Sleep Mode

Automotive LIN Solutions

  • TJA1124: Quad LIN Commander Transceiver for In-Vehicle Subnetworks

Documentation

Quick reference to our documentation types.

Filters

5 documents

Design Resources

Select a section:

Design Files

Filters

2 design files

  • Printed Circuit Boards and Schematics

    S32G-VNP-RDB Reference Design – REV B3 Schematics

    PDFRev B3Mar 2, 2021 08:23:0015.3 MBS32G-VNP-RDB_SCH
    Sign in required
    Download
  • Design Files - miscellaneous

    S32G-VNP-RDB Reference Design – REV B3 Design Files

    ZIPRev B3Apr 20, 2021 08:56:0042.7 MBS32G-VNP-RDB-DESIGNFILES
    Sign in required
    Download

Training

Filters

3 trainings
