Secondary side controller enabling very low standby power

Overview

Archived content is no longer updated and is made available for historical reference only.

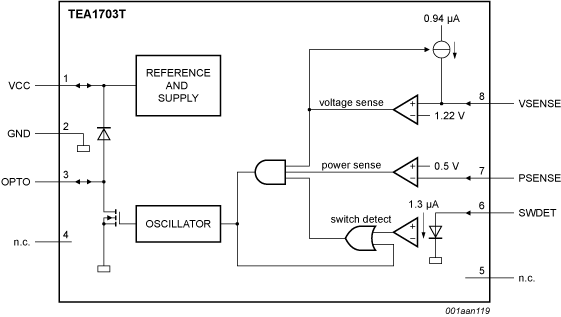

The TEA1703T is a low power standby controller IC intended to be used in applications which require an extreme low no-load standby power. The TEA1703T includes circuitry for detecting output voltage, output power and switching. The TEA1703T integrates a switched-mode optocoupler driver, which enables an optocoupler to be driven with a high peak current while keeping the required power low. The TEA1703T’s typical current consumption is 30 μA. In a typical notebook adapter application the TEA1703T’s power consumption is less than 0.5 mW.

Features

Switched-Mode Power Supply (SMPS) standby controller IC enabling very low power standby operation
Large input voltage range (5 V up to 30 V)
Very low supply current (30 μA) typical
Switched-mode optocoupler driver output (NXP^® Semiconductors patented)
Easy application, only 6 pins to connect

Target Applications

Can be used in applications that require a very low power no-load standby

Features

Switched-Mode Power Supply (SMPS) standby controller IC enabling very low power standby operation
Large input voltage range (5 V up to 30 V)
Very low supply current (30 μA) typical
Switched-mode optocoupler driver output (NXP^® Semiconductors patented)
Easy application, only 6 pins to connect
