No Longer Manufactured

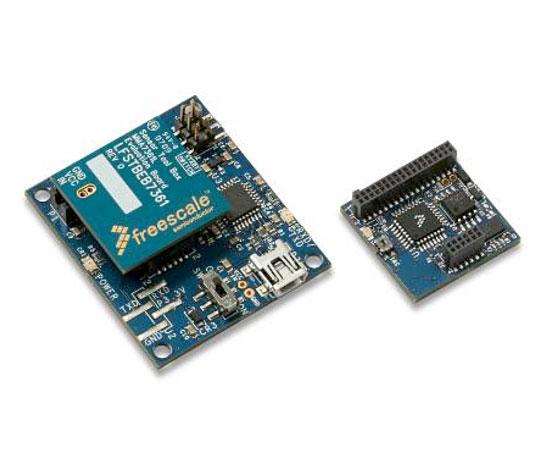

Sensor Toolbox Accelerometer Development Board

Roll over image to zoom in

The LFSTBEB7361 provides an evaluation platform for the NXP^® MMA7361 3-axis analog low-g accelerometer. The LFSTBEB7361 includes an 8-bit MC9S08QE8CWL MCU for data acquisition, and an EEPROM for data storage. The LFSTBEB7361 is designed to work with the LFSTBBAT9 or LFSTBUSB. Military specification Samtec connectors provide a robust interface.

Archived content is no longer updated and is made available for historical reference only.

Software

Documentation

Quick reference to our documentation types

1-10 of 11 documents

Compact List

AN2265, Assembly Guidelines for Land Grid Array (LGA) Package Application Note[AN2265]

PDFSep 18, 2023Rev 3
Tilt Sensing Using Linear Accelerometers[AN3461]

PDFMar 26, 2013Rev 6
AN3751, Frequency Analysis in the Industrial Market Using Accelerometer Sensors[AN3751]

PDFJul 28, 2008Rev 0
AN3459 Measuring Freefall using NXP’s MMA7360L 3-Axis Accelerometer[AN3459]

PDFJun 12, 2007Rev 1
AN3454 Power Cycling Algorithm using the MMA73x0L 3-Axis Linear Accelerometer[AN3454]

PDFJun 12, 2007Rev 1
AN3447 Implementing Auto-Zero Calibration Technique for Accelerometers[AN3447]

PDFMar 27, 2007Rev 0
AN3397, Implementing Positioning Algorithms Using Accelerometers - Application Notes[AN3397]

PDFFeb 26, 2007Rev 0
AN1612, Shock and Mute Pager Applications Using Accelerometers[AN1612]

PDFOct 16, 2006Rev 5
AN3107 Measuring Tilt with Low-g Accelerometers[AN3107]

PDFMay 3, 2005Rev 0
AN1611 Impact and Tilt Measurement Using Accelerometer[AN1611]

PDFDec 9, 2004Rev 3

MMA7361LC, ±1.5g, ±6g Three Axis Low-g Micromachined Accelerometer - Data Sheet[MMA7361LC]

PDFAug 25, 2011Rev 1

Design Resources

Software

Quick reference to our software types.

1 software file

BSPs and Device Drivers
Sensor Toolbox Installer

EXERev 4.2.1.20May 27, 2015 00:00:0043.90 MBSNRTOOLBOX
