Sensor Toolbox Boards for MMA865xFC Accelerometers

LFSTBEB865X
  • Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

Archived content is no longer updated and is made available for historical reference only.

This board is no longer in production. The FRDM-K64F-AGM04 is available for order as an alternative. For additional information, please contact your local Sales and Marketing office.

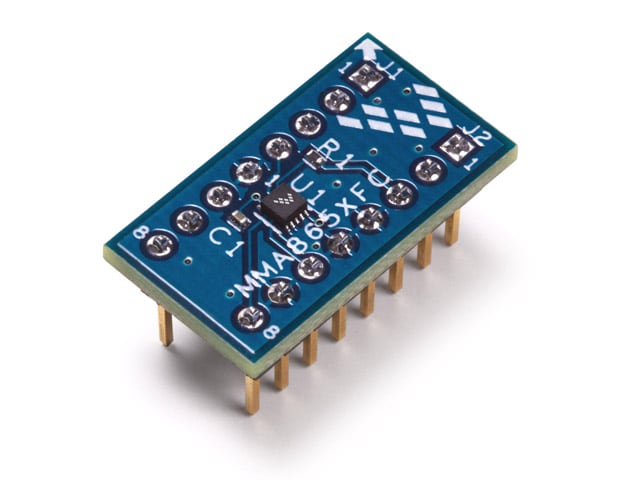

The NXP® LFSTBEB865x Sensor Toolbox development kit allows you to quickly evaluate the two high performance 3-axis accelerometers with all the embedded features of previous solutions now in a 56% smaller form factor (2x2x1mm DFN package).

The kit contains three PCBs: MMA8652FC and MMA8653FC accelerometer daughter cards and the sensor interface board. Customers who have not already purchased the LFSTBUSB communication board, can order this separately or order the full kit RDMMA865x that also contains the LFSTBUSB board.

Product Details

Select a section:

Supported Devices

Sensors

Accelerometers

  • MMA8652FC: ±2g/±4g/±8g, Low g, 12-Bit Digital Accelerometer
  • MMA8653FC: ±2g/±4g/±8g, Low g, 10-Bit Digital Accelerometer

Documentation

Quick reference to our documentation types.

Filters

3 documents

Design Resources

Select a section:

Design Files

Filters

2 design files

  • Printed Circuit Boards and Schematics

    MMA8653 DIP Schematic

    PDFRev ADec 8, 2014 00:00:0093.6 KBMMA8653-SCH
    Download
  • Printed Circuit Boards and Schematics

    MMA8652 DIP Schematic

    PDFRev ADec 8, 2014 00:00:0094.3 KBMMA8652-SCH
    Download

Software

Filters

1 software file

  • BSPs and Device Drivers

    Sensor Toolbox Installer

    EXERev 4.2.1.20May 27, 2015 00:00:0046.0 MBSNRTOOLBOX
    Download

Note: For better experience, software downloads are recommended on desktop.
