TEA1523P: SMPS ICs for low-power systems ARCHIVED

Overview

Archived content is no longer updated and is made available for historical reference only.

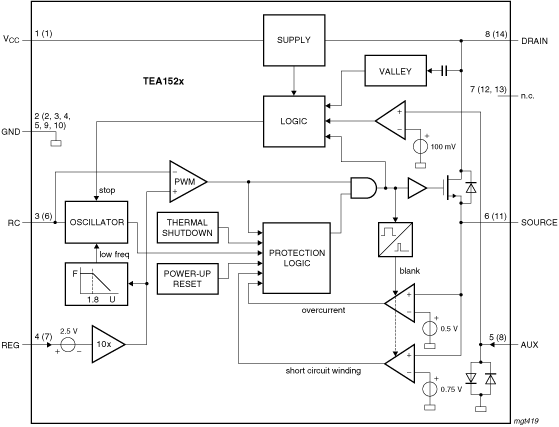

The TEA152x family STARplug is a Switched Mode Power Supply (SMPS) controller IC that operates directly from the rectified universal mains. It is implemented in the high-voltage EZ-HV SOI process, combined with a low-voltage Bipolar Complementary Metal-Oxide Semiconductor (BiCMOS) process. The device includes a high-voltage power switch and a circuit for start-up directly from the rectified mains voltage. A dedicated circuit for valley switching is built in, which makes a very efficient slim-line electronic power-plug concept possible. In its most basic version of application, the TEA152x family acts as a voltage source. Here, no additional secondary electronics are required. A combined voltage and current source can be realized with minimum costs for external components

MoreLess

Features

Designed for general purpose supplies up to 30 W
Integrated power switch: 6.5 Ω; 650 V
Operates from universal AC mains supplies (80 V to 276 V)
Adjustable frequency for flexible design
RC oscillator for load insensitive regulation loop constant
Valley switching for minimum switch-on loss
Frequency reduction at low power output makes low standby power possible (< 100 mW)
Adjustable overcurrent protection
Undervoltage protection
Temperature protection
Short-circuit winding protection
Simple application with both primary and secondary (opto) feedback

Target Applications

Chargers
Adapters
Set Top Box (STB)
DVD
CD(R)
TV and monitor standby supplies
PC peripherals
Microcontroller supplies in home applications and small portable equipment, etc.

MoreLess

Features

Designed for general purpose supplies up to 30 W
Integrated power switch: 6.5 Ω; 650 V
Operates from universal AC mains supplies (80 V to 276 V)
Adjustable frequency for flexible design
RC oscillator for load insensitive regulation loop constant
Valley switching for minimum switch-on loss
Frequency reduction at low power output makes low standby power possible (< 100 mW)
Adjustable overcurrent protection
Undervoltage protection
Temperature protection
Short-circuit winding protection
Simple application with both primary and secondary (opto) feedback

Target Applications

Chargers
Adapters
Set Top Box (STB)
DVD
CD(R)
TV and monitor standby supplies
PC peripherals
Microcontroller supplies in home applications and small portable equipment, etc.
