OM13491, OM13492, OM13493, OM13494, OM13495, OM13496, OM13497 Breakout Board[UM10754]Getting Started
- No Longer Manufactured
- OM13492
Surface Mount to DIP Evaluation Board
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

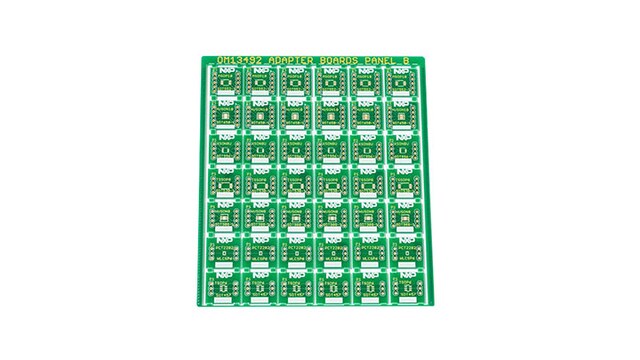

OM13492 allows one to evaluate small, surface mount devices by breaking out the package leads to 100 mil centers pins, emulating a DIP package. The OM13492 supports the following packages: MSOP10 (SOT552-1), HVSON10 (SOT650-1), XSON8U (SOT996-2), TSSOP8 (SOT530-1), HVSON8 (SOT908-1), WLCSP6 (PCT2202UK), and TSOP6 (SOT457, SOT1353-1).
Product Details
Features
Connectivity
- Expand the kit with add-on I²C daughter cards
- Easy connection to small surface mount packages
Key Features
- Allows evaluation of device that is only available in surface mount packages
- 100 mil center headers emulate DIP package for easy bread boarding
- Eliminates costly sockets and custom printed circuit boards
