TDA7050T

Roll over image to zoom in

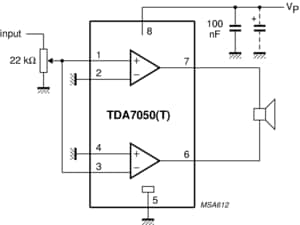

The TDA7050T is a low voltage audio amplifier for small radios with headphones (such as watch, pen and pocket radios) in mono (bridge-tied load) or stereo applications.

Data Sheet

Documentation

Quick reference to our documentation types.

5 documents

^{Data Sheet}
Low voltage mono/stereo power amplifier

PDFRev 2.0Jul 1, 199451.0 KBTDA7050TEnglish
^{Package Information}
plastic, small outline package; 8 terminals; 1.27 mm pitch; 4.9 mm x 3.9 mm x 1.75 mm body

PDFRev 1.1Jan 9, 2017175.4 KBSOT96-1English
^{Packing Information}
SO8; Reel pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,118 or J Ordering code (12NC) ending 118

PDFRev 2.0Apr 19, 2013237.4 KBSOT96-1_118English
Sign in required
^{Packing Information}
Tape reel SMD; standard product orientation 12NC ending 115

PDFRev 1.0Nov 23, 2012227.6 KBSOT96-1_115English
^{Supporting Information}
Footprint for reflow soldering

PDFRev 1.0Oct 8, 20098.8 KBSO-SOJ-REFLOWEnglish

Documentation

Filter by

Low voltage mono/stereo power amplifier

plastic, small outline package; 8 terminals; 1.27 mm pitch; 4.9 mm x 3.9 mm x 1.75 mm body

SO8; Reel pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,118 or J Ordering code (12NC) ending 118

Tape reel SMD; standard product orientation 12NC ending 115

Footprint for reflow soldering
