SAF7167AHW: YUV-to-RGB digital-to-analog converter ARCHIVED

Overview

The SAF7167AHW is a mixed-mode designed IC containing a video data path, keying control block, analog mixer, and a voltage output amplifier, capable of converting digital video data to analog RGB video, and then mixing video and external analog RGB inputs.

The video data path contains a data re-formatter, YUV-to-RGB colour space matrix as well as triple DACs for video data processing. An analog mixer performs multiplexing between DAC outputs of the video path and external analog RGB inputs.

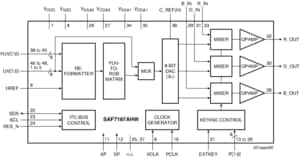

The final analog outputs are buffered with built-in voltage output amplifiers to provide the direct driving capability for a 150 Ω load. See the overall block diagram.

The operation of SAF7167AHW is controlled via the I²C-bus.

MoreLess

Features

Archived content is no longer updated and is made available for historical reference only.

On-chip mixing of digital video data and analog RGB signals
Supports video input format of YUV 4 :2 :2, 4 :1 :1, 2 :1 :1 and RGB 5 :6 :5
Video input rate up to 66 MHz
Allows for both binary and twos complement video input data
Triple 8-bit DACs for video output
Built-in voltage output amplifier
Provides keying control with external key and internal 8-bit, 2 x 8-bit and 3 x 8-bit pixel colour key
Programmable via the I²C-bus
5 V CMOS device; HTQFP48 package.

MoreLess

Features

Archived content is no longer updated and is made available for historical reference only.

On-chip mixing of digital video data and analog RGB signals
Supports video input format of YUV 4 :2 :2, 4 :1 :1, 2 :1 :1 and RGB 5 :6 :5
Video input rate up to 66 MHz
Allows for both binary and twos complement video input data
Triple 8-bit DACs for video output
Built-in voltage output amplifier
Provides keying control with external key and internal 8-bit, 2 x 8-bit and 3 x 8-bit pixel colour key
Programmable via the I²C-bus
5 V CMOS device; HTQFP48 package.
