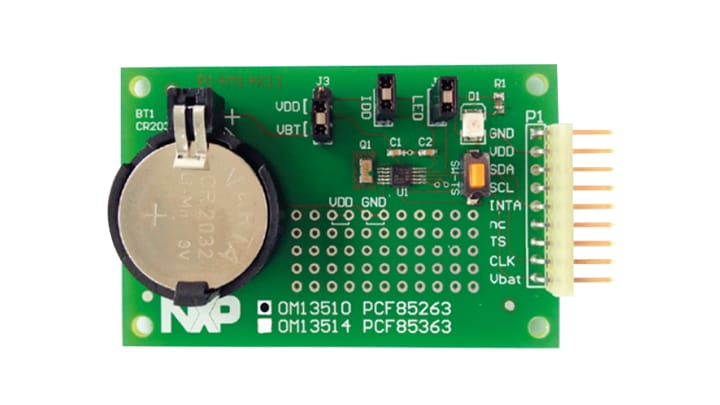

PCF85263A I²C-bus evaluation board

Roll over image to zoom in

Product Details

Select a section:

Features

    Straight forward evaluation of the new tiny RTC PCF85263 with

  • Battery back-up
  • 2 alarm facilities with 2 configurable interrupt outputs
  • Time stamp
  • Tracking time or stopwatch, with 1/100 s resolution

Connectivity

  • Easy access to all pins despite of the tiny package:
    • Connector P2 100mil (2.54 mm) pin pitch
    • Access to all pins
  • Interfacing with the Fm+ development board OM13320
    • Connector P1

Power Management

  • Battery on board for autonomous operation
    • Can be switched off
  • Easy measurements of power consumption
    • Jumper J2 to open to link in μA-meter

Components

  • Push bottom to trigger timestamp

Buy Options

  • OM13510

  • PCF85263A I²C-bus evaluation board.

  • $62.50 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 1
    • Shipping: Normally ships 1-2 business days
