PCA9532 Demonstration Board

OM13528UL Active

Roll over image to zoom in

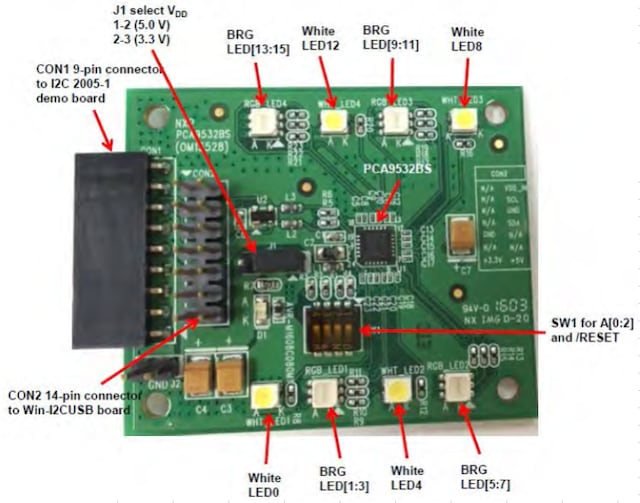

The PCA9532 evaluation board features LEDs for color mixing, blinking and dimming demonstrations. A graphical interface allows the user to easily explore the different functions of the driver. The board can be connected in series with other I²C demo-boards to create an evaluation system. The IC communicates to the host via the industry standard I²C-bus/SMBus port. The evaluation software runs under Microsoft® Windows™ PC platform.

Product Details

Supported Devices

LED Drivers

  • PCA9532: 16-Bit I²C-Bus LED Dimmer

Features

Key Features

  • A complete evaluation platform for the PCA9532 16-channel Fm I²C-bus 25 mA voltage switch LED driver
  • Convenient test points for easy scope measurements and signal access

Connectivity

  • USB interface to the host PC

Power Management

  • No external power supply required

User Components

  • On-board RGB and White LEDs for visual experience

Tools and OS Support

  • Easy to use GUI-based software demonstrates the capabilities of the PCA9532

Buy Options

OM13528-Image

Click to expand

OM13528
Active

PCA9532 Demonstration Board.

$42.09 USD
Pending Stock
ADD TO CART
Order from distributors
