TEA1720 10.6 W / 5 V USB Mobile Charger

TEA1720ADB1132

Roll over image to zoom in

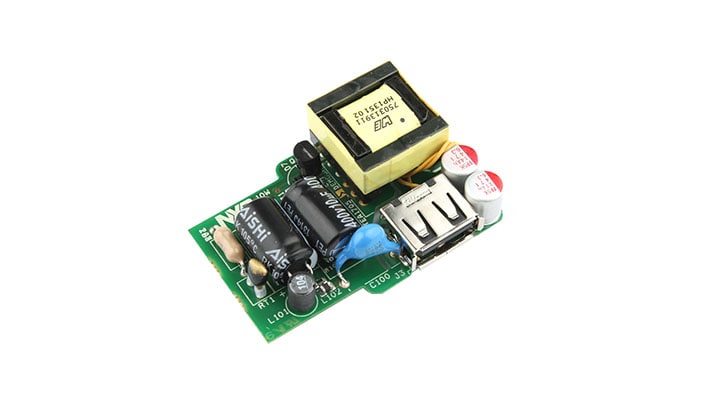

The TEA1720BT demo board is a slim line sized and cost effective solution for a 10.6 W USB smartphone charger, USB wireless charger or any low power adapter solution.

Product Details

Select a section:

Supported Devices

Products

No Longer Manufactured

  • TEA1720B3T: HV start-up flyback controller for ultra-low no-load charger applications up to 12.5 W
  • TEA1720BT: HV start-up flyback controller for ultra-low no-load charger applications up to 12.5 W

Features

IC used

  • TEA1720B3T SOP8 DCM mode controller
  • Universal Mains: 85 - 264 Vac / 47 - 63 Hz
  • CC-mode: +/- 10 %
  • Primary sensing
  • Excellent transient response together with TEA1705
  • Low component count for a cost effective implementation
  • Energy Star v6.0 compliant
  • USB 1.1. battery charging reference
  • EMI CISPR22 compliant

Power Management

  • Output power is 10.6 W (5 V / 2.12 A_typically)
  • High average efficiency: > 82 %
  • Ultra low no load power consumption: < 20 mW

Components

  • External NPN switch
  • Compensation of cable impedance included

Buy Options

  • TEA1720ADB1132

  • TEA1720 10.6 W / 5 V USB Mobile Charger.

    • Demo board
    • Quick start guide

    Documentation

    Quick reference to our documentation types.

    Filters

    5 documents

    Design Resources

    Select a section:

    Design Files

    Filters

    1 design file

    • Printed Circuit Boards and Schematics

      Gerber files TEA1720ADB1132

      ZIPRev 1.0Sep 5, 2014 00:00:00105.0 KBTEA1720ADB1132_GERBER_FILES_1
