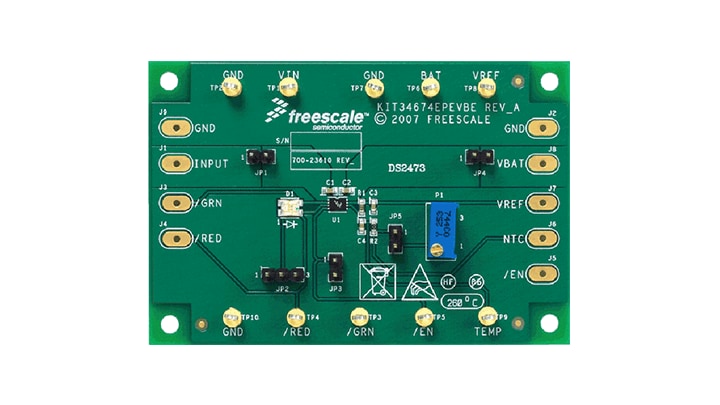

The Evaluation Kit features the MC34674, which is a fully integrated single-cell Li-Ion and Li-Polymer battery charger optimized for travel charger applications. The few external components required include a dual-color LED for charge-status indication, a negative-temperature-coefficient (NTC) thermistor circuit for setting the charge temperature window, and two decoupling capacitors.
The MC34674 tolerates an input voltage up to 28 V, which allows low-cost ac/dc converters to be used for further system-cost reduction. A charge cycle of the MC34674 includes trickle, constant-current (CC) and constant-voltage (CV) charge modes. The CC-mode current is selectable from 50 mA to 1.05 A, with 10% accuracy and the constant-output voltage in the CV-mode is fixed at 4.2 V.
The MC34674 has many features such as trickle charging for a deeply-discharged battery, an internal timer for termination to prevent charging a failed battery, charger current thermal foldback for thermal protection, and smart battery-connection verification to prevent charging in case there is no battery connected. It has a 2.6 V falling power-on-reset (POR) threshold, making it great to work with current-limited power supplies. When the charger is disabled, the BAT pin leaks less than 1 µA current from the battery.
