Freedom Board FS4503, System Basis Chip, LDO 500 mA Vcore FS1B LDT CAN

FRDMFS4503CAEVM

Roll over image to zoom in

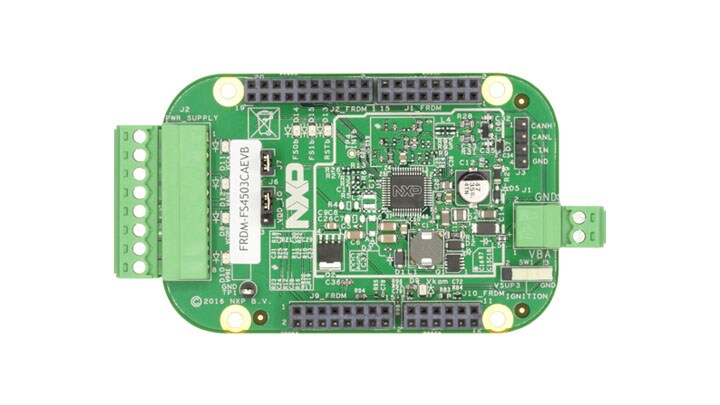

FRDMFS4503CAEVM evaluation module demonstrates the functionality of MC33FS4503 supports CAN FD and FS1B with Vcore LDO regulator of 500 mA. These Safety SBCs target ISO 26262 automotive functional safety standard.

NXP's analog product development boards provide an easy-to-use platform for evaluating NXP® products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic ICs and system-in-package devices that use proven high-volume SMARTMOS® technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state of the art systems.

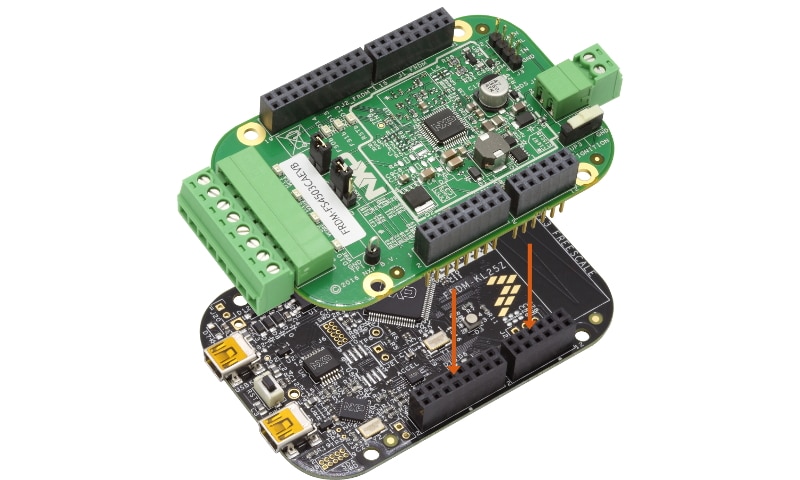

The tool can be use in a standalone mode. Control is done via a delivered KL25Z Freedom board plugged on it and accessible thanks to USB. SPI command is easily controlled by the FlexGUI downloadable here

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

KL Series Arm Cortex-M0+

  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Power Management

Safety SBCs

  • FS4500: Grade 1 and Grade 0 Safety Power System Basis Chip with CAN Flexible Data Transceiver

Features

Connectivity

  • CAN FD connector
  • FS0b and FS1b output pins

Power Management

  • VCORE bridge resistor configured for 1.3 V
  • VCCA configured to 3.3 V (5 V possible)
  • VAUX configured to 5 V (3.3 V possible)
  • Vpre Regulator in Buck or Boost mode

General Specifications

  • KL25Z Freedom delivered with the EVM

Buy Options

  • FRDMFS4503CAEVM

  • Freedom Expansion kit, FS4503 system Basis Chip with KL25Z.

    • FRDMFS4503CAEVB
    • FRDM-KL25Z
    • Cable, Mini USB A to B (M/M)
    • Vbat connector (2 pins)
    • Load connector (8 pins)
  • $117.30 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor

Documentation

Quick reference to our documentation types.

Filters

3 documents

Design Resources

Select a section:

Design Files

Filters

2 design files

  • Printed Circuit Boards and Schematics

    Gerber files for the FRDMFS4503CAEVM Evaluation board.

    ZIPRev 1.0Dec 6, 2016 18:49:00460.6 KBFRDMFS4503CAEVM-GRBR
    Download
  • Printed Circuit Boards and Schematics

    FRDMFS4503CAEVM Schematics

    PDFRev ADec 6, 2016 18:20:00254.0 KBFRDMFS4503CAEVM-A-SCH
    Download

Software

Filters

1 software file

  • Embedded Application Software - miscellaneous

    FlexGUI

    ZIPRev 1.0May 12, 2016 00:00:003.1 MBFLEXGUI
    Download
