Freedom Hardware Tool for Evaluation of the MC24XS4 Family

FRDM-24XSMBEVB

Roll over image to zoom in

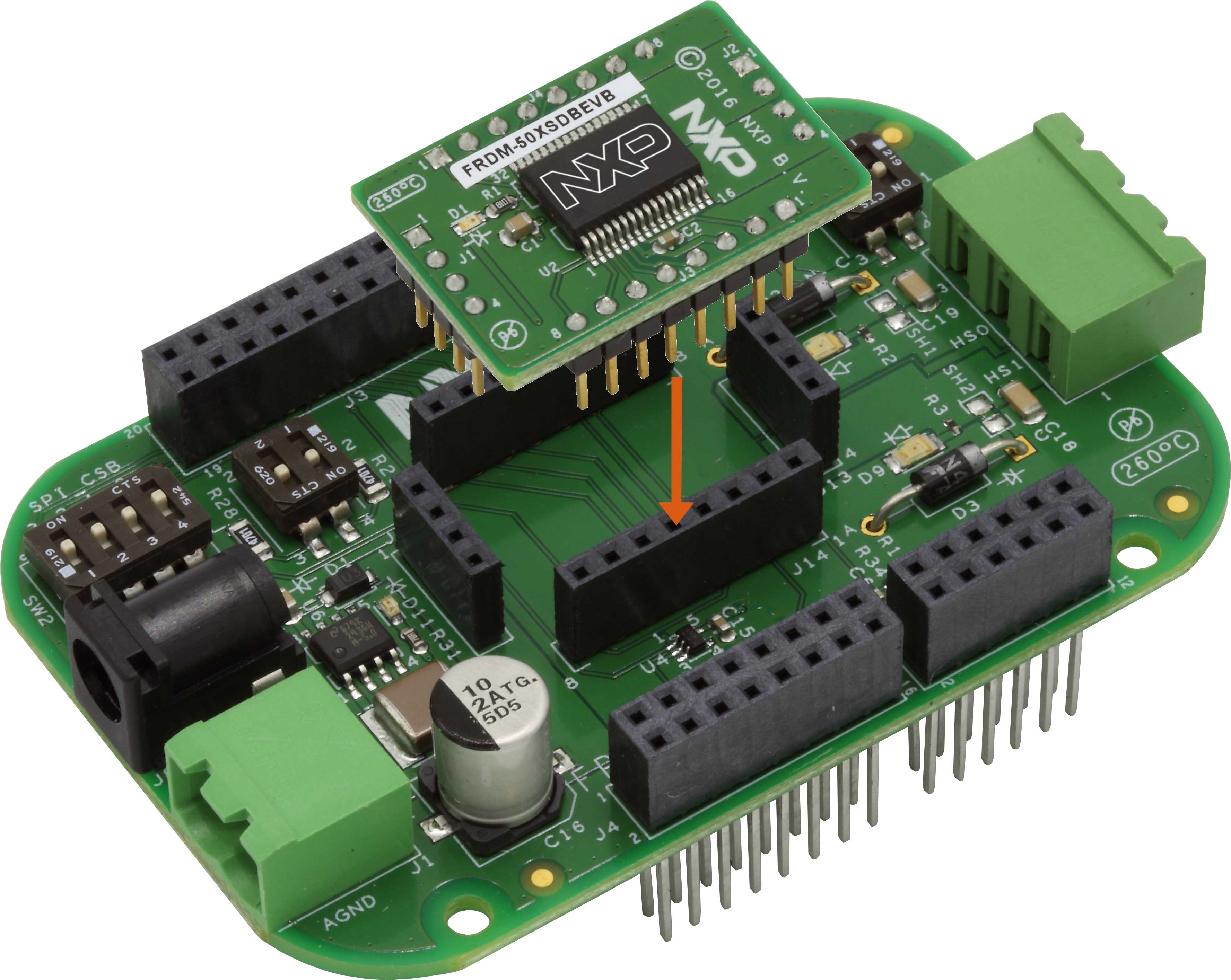

NXP's Freedom boards FRDM-24XSMBEVB is a hardware tool for evaluation and development of the different eXtreme switches that composes the 24 V family. This motherboard can be associated with 5 different devices from this family thanks to its shield connectors.
These compatible devices are from 24 V family, dual high side devices that feature integrated control with high flexibility and a high number of protection and diagnostic functions. These boards are easy to use thanks to the following interfaces:

  • FRDM-KL25Z and its SPIGEN Graphical User Interface
  • Freedom KL25z, KV10Z, K64F with Processor Expert components

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

K6x Ethernet

  • K64_120: Kinetis® K64-120 MHz, 256 KB SRAM Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core

KL Series Arm Cortex-M0+

  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

KV Series Arm Cortex-M4/M0+/M7

  • KV1x: Kinetis® KV1x-75 MHz,  Entry-Level 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M0+

Power Management

High Side Switches

  • MC24XS4: 24 V Multipurpose Low RDSON eXtreme Switch

Features

Main Board

  • FRDM-24XSMBEVB that is associated with MCUs

5 different shield boards that cover the 5 devices of the family

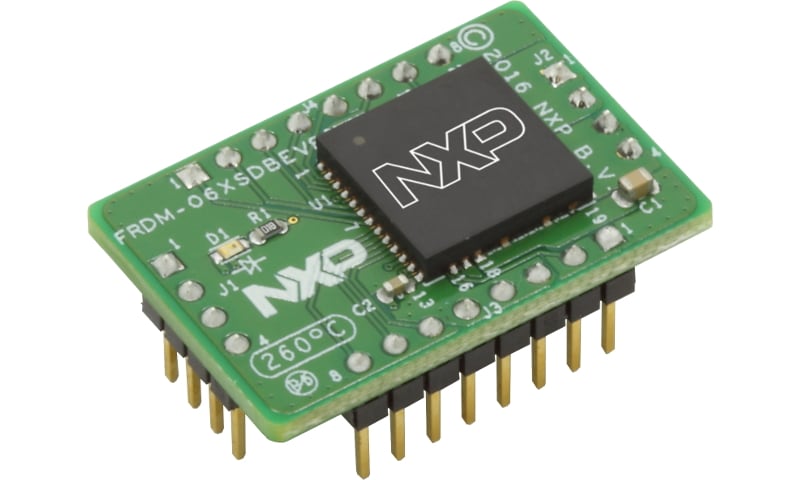

  • FRDM-06XSDBEVB: covers MC06XS4200 (2 outputs 06 mOhm in PQFN package)
  • FRDM-10XSDBEVB: covers MC10XS4200 (2 outputs 10 mOhm in PQFN package)

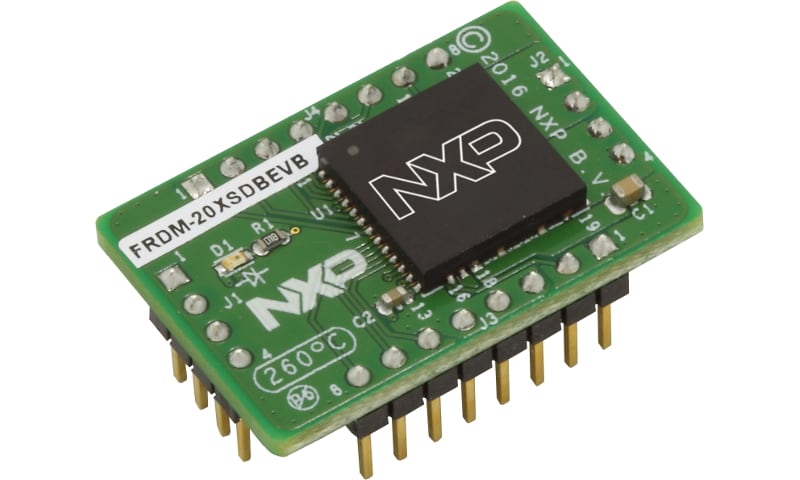

  • FRDM-20XSDBEVB: covers MC20XS4200 (2 outputs 20 mOhm in PQFN package)

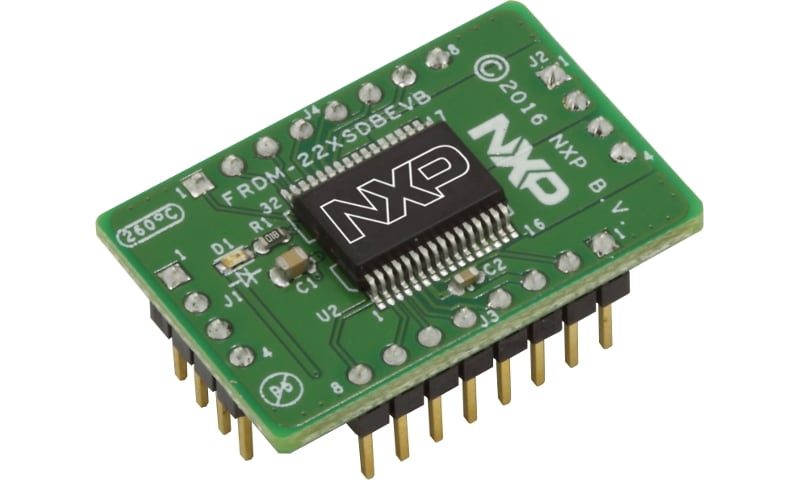

  • FRDM-22XSDBEVB: covers MC22XS4200 (2 outputs 22 mOhm in SOIC32 package)
  • FRDM-50XSDBEVB: covers MC50XS4200 (2 outputs 50 mOhm in SOIC32 package)

General Specifications

  • This board can control various type opf loads such as solenoids, PLC, DC motors, bulbs, or LED...
  • These devices offer to set of overcurrent profiles, channel control including PWM duty-cycles, parallel mode, output-ON and -OFF OpenLoad detections, thermal shut-down and prewarning, and fault reporting
  • Output current monitoring with programmable synchronization signal
  • Compatible SPI software driver among the family

Device can be driven by the 16-bit SPI using

  • KL25Z with SPIGen software
  • KL25Z, KV10Z and K64F using Processor Expert component 36 V eXtremeSwitch using CodeWarrior 10.6 or Kinetis Design Studio v3.0 or higher
  • With direct input signals in Fail-safe mode operation (switch on board)

Buy Options

FRDM-24XSMBEVB-Image

Click to expand

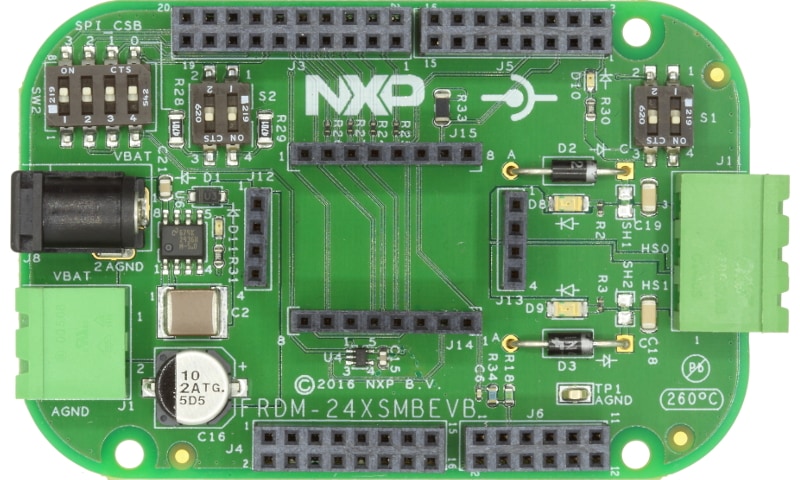

  • FRDM-24XSMBEVB

  • Freedom platform mother board for 24V extreme switches.

    • Freedom board
    • Connectors for power input/outputs
    • Quick Start Guide
  • $41.40 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 90
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor

  • FRDM-50XSDBEVB

  • Freedom platform daughter board for 24V extreme switches 50mOhm.

  • $34.50 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 42
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor

  • FRDM-22XSDBEVB

  • Freedom platform daughter board for 24V extreme switches 22mOhm.

  • $34.50 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 42
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor

  • FRDM-20XSDBEVB

  • Freedom platform daughter board for 24V extreme switches 20mOhm.

  • $34.50 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 25
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor

  • FRDM-10XSDBEVB

  • Freedom platform daughter board for 24V extreme switches 10mOhm.

  • $34.50 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 42
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor

  • FRDM-06XSDBEVB

  • Freedom platform daughter board for 24V extreme switches 6mOhm.

  • $34.50 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 42
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor

Documentation

Quick reference to our documentation types.

Filters

1-5 of 6 documents

Show All

Design Resources

Select a section:

Software

Filters

3 software files

  • Components and Modules

    Processor Expert support for 36V eXtreme switches with examples

    ZIPRev 1.0Nov 19, 2014 00:00:006.5 MB36V-EXTREMESWITCH-PEX-SW-EMC
    Sign in required
    Download
  • Embedded Application Software - miscellaneous

    SPiGen Software FRDM-24XS4-SW.spi

    SPIRev 1.0Mar 1, 2017 12:19:003.1 KBFRDM-24XS4-SW
    Download
  • Embedded Application Software - miscellaneous

    KDS Software files: FRDM-24XSMBEVB_KL25z-Demo.zip

    ZIPRev 1.0Mar 1, 2017 12:19:002.0 MBFRDM-24XSMBEVB_KL25z
    Download
