Keil MCB1857 Evaluation Board

OM13039

Roll over image to zoom in

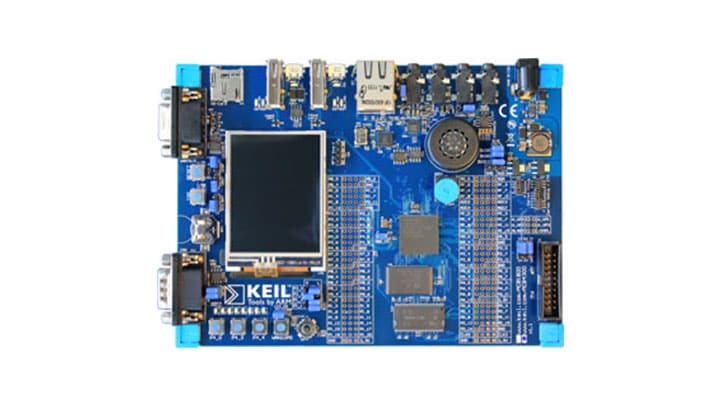

The Keil MCB1857 Evaluation Board enables you to create and test working programs based on the LPC1800 family of Arm Cortex™-M3 based devices. The MCB1857 Evaluation Board and Starter Kit includes the MDK-Arm Lite Edition Tools. These tools help you get started writing programs and testing the microcontroller and its capabilities. Sample applications that run on the MCB1857 evaluation board, and a Quickstart guide are included.

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

LPC1800 Arm Cortex-M3

  • LPC1810FBD144: High Performance 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1810FET100: High Performance 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1820FBD144: High Performance 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1820FET100: High Performance 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1830FBD144: High Performance 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1830FET100: High Performance 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1830FET180: High Performance 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1830FET256: High Performance 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1833FET256: High Performance 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1837FET256: High Performance 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1850FET180: Quad SPI Flash Interface (SPIFI), 200 KB SRAM, Two High-Speed USB, Ethernet, LCD, TFBGA180 Package
  • LPC1850FET256: Quad SPI Flash Interface (SPIFI), 200 KB SRAM, Two High-Speed USB, Ethernet, LCD, LBGA256 Package
  • LPC1853FET256: High Performance 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1857FET256: 1 MB Flash, 136 KB SRAM, Two High-Speed USB, Ethernet, LCD, LBGA256 Package

Features

Microcontroller

  • 180 MHz Arm Cortex-M3 processor-based MCU in LBGA256

Memory

  • 136 kB On-Chip SRAM
  • 1 MB dual bank On-Chip Flash
  • On-Board Memory: 16 MB NOR Flash, 4 MB Quad-SPI Flash, 16 MB SDRAM, & 16 kB EEPROM (I2C)

Connectivity

  • 10/100 Ethernet Port
  • High-speed USB 2.0 Host/Device/OTG interface (USB host + Micro USB Device/OTG connectors)
  • Full-speed USB 2.0 Host/Device interface (USB host + micro USB Device connectors)
  • CAN interfaces
  • Serial/UART Port
  • MicroSD Card Interface

Debug

    Debug Interface Connectors:

  • 20-pin JTAG (0.1 inches)
  • 10-pin Cortex debug (0.05 inches)
  • 20-pin Cortex debug + ETM Trace (0.05 inches)

Sensors

  • Digital Temperature Sensor (I2C)

Display

  • Color QVGA TFT LCD with touchscreen

Audio

  • Audio codec with Line-In/Out and Microphone/headphone connector + Speaker

Power Management

  • Analog Voltage Control for ACD Input

User Components

  • 4 user push-buttons + reset

Buy Options

  • OM13039

  • Keil MCB1857 Evaluation Board.

  • $379.50 USD
  • For a quantity of 1
