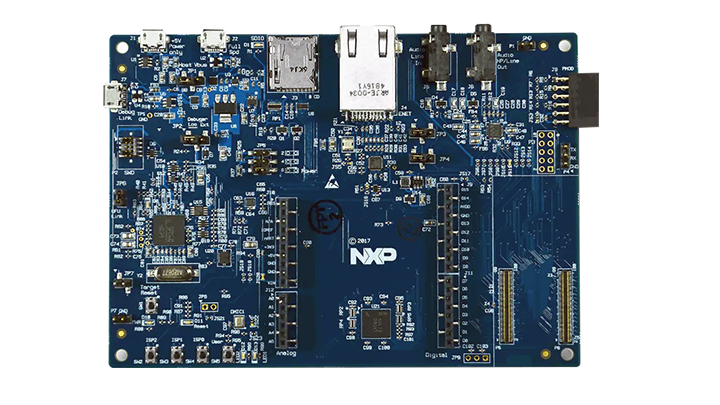

IoT Module Base Board

OM40006

Roll over image to zoom in

The IoT module base board has been designed to provide easy access to the peripherals available on NXP's MCU IoT modules, such as the LPC54018 IoT module (OM40007). This baseboard provides several on-board peripherals for rapid prototyping and evaluation, including SDRAM, USB interface, LCD with touchscreen, stereo audio codec, digital microphone, Ethernet PHY, micro SD and Arduino® UNO expansion connectors.

In addition, the baseboard enables use of a wide range of development tools, including NXP's MCUXpresso Integrated Development Environment (IDE) and other popular toolchains including IAR and Keil.

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

LPC54000 Arm Cortex-M4

  • LPC540XX: Power-Efficient Microcontrollers (MCUs) with Advanced Peripherals Based on Arm® Cortex®-M4 Core

Features

Memory

  • 128 Mbit Winbond SDRAM
  • Micro SD card slot

Connectivity

  • Arduino® UNO compatible expansion site
  • Full speed USB port with micro A/B connector for a host or device functionality
  • High-speed USB device port
  • 10/100 Mbit/s Ethernet (RJ45 connector)

Power Management

  • On-board 3.3V regulator with external power supply options

Debug

    On-board, high-speed USB based, Link2 debug probe with CMSIS-DAP and SEGGER J-Link protocol options for debugging of the installed module

  • UART and SPI port bridging from module a target to USB via the onboard debug probe
  • Can be used with external debug probe connected to target module
  • On-board Link2 can be used to debug and off-board target

Sensors

  • NXP MMA8652FCR1 accelerometer

Audio

  • Knowles SPH0641LM4H digital microphone
  • Stereo audio codec with a line in/out

Display

  • 272x480 color LCD with capacitive touchscreen

Components

  • 2 x user LEDs
  • Target reset, ISP/user (3), and user buttons

Buy Options

Documentation

Quick reference to our documentation types.

Filters

1 documents

Design Resources

Select a section:

Design Files

Filters

1 design file

  • Printed Circuit Boards and Schematics

    Schematics, BOM and Gerber files for IoT Module Baseboard (OM40006)

    ZIPRev 1Mar 8, 20181.4 MBOM40006-PCB
