MRF13750H

Roll over image to zoom in

These 750 W CW transistors, MRF13750H and MRF13750HS, are designed for industrial, scientific and medical (ISM) applications in the 700 to 1300 MHz frequency range. The transistors are capable of CW or pulse power in narrowband operation.

Data Sheet

Application Notes

Product Details

Block Diagram

MRF13750H 915 MHz Reference Circuit

Get diagram PDF

Features

Internally input pre-matched for ease of use
Device can be used single-ended or in a push-pull configuration
Characterized for 30 to 50 V
Suitable for linear applications with appropriate biasing
Integrated ESD protection
Recommended driver: MRFE6VS25GN (25 W)
RoHS compliant

915 MHz industrial heating/welding systems
1300 MHz particle accelerators

RF Performance Table

Typical Performance

V_DD = 50 Vdc

Frequency (MHz)	Signal Type	P_out (W)	G_ps (dB)	η_D (%)
915⁽¹⁾	CW	750	19.3	67.1
915⁽²⁾	Pulse (100 µsec, 10% Duty Cycle)	850	20.5	69.2
1300⁽³⁾	CW	700	17.2	56.0

Load Mismatch/Ruggedness

Frequency (MHz)	Signal Type	VSWR	P_in (W)	Test Voltage	Result
915⁽²⁾	Pulse (100 µsec, 10% Duty Cycle)	> 10:1 at all Phase Angles	15.9 Peak (3 dB Overdrive)	50	No Device Degradation

1. Measured in 915 MHz narrowband reference circuit.
2. Measured in 915 MHz narrowband production test fixture.
3. Measured in 1300 MHz narrowband reference circuit.

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Documentation

Quick reference to our documentation types

5 documents

Compact List

AN1908 - Solder Reflow Attach Method for High Power RF Devices in Air Cavity Packages[AN1908]

PDFFeb 24, 2011Rev 1

MRF13750H 750 W CW, 700-1300 MHz, 50 V Data Sheet[MRF13750H]

PDFJan 19, 2018Rev 1

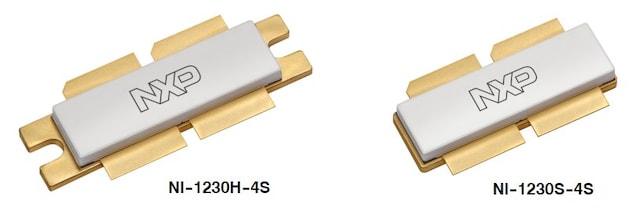

98ASB16977C, NI-1230H-4S, 41.15x10.16x4.19, Pitch 13.72, 5 Pins[SOT1787-1]
