BGU8020 GNSS LNA evaluation board

OM7895
No Longer Manufactured

Roll over image to zoom in

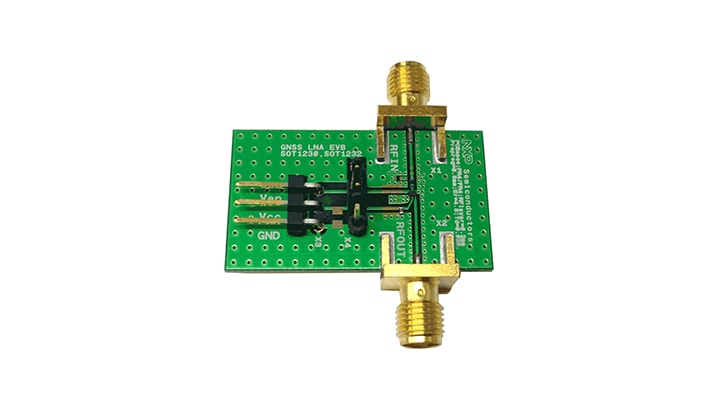

The BGU8020 GPS LNA evaluation board simplifies the evaluation of the BGU8020 LNA for the GPS application. The evaluation board enables testing of the device performance and requires no additional support circuitry. The board is fully assembled with the BGU8020, the input series inductor and a decoupling capacitor. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU8020 can operate from a 1.5 V to 3.1 V single supply and consumes about 2.0 mA.

Product Details

Features

  • Noise figure (NF) = 0.85 dB
  • Gain = 16.5 dB
  • High input 1 dB compression point of -11 dBm
  • High out of band IP3i of -2 dBm

Power Management

  • Supply voltage 1.5 V to 3.1 V
  • Covers full GNSS L1 band, from 1559 MHz to 1610 MHz
  • Optimized performance at low supply current of 2.0 mA
  • Power-down mode current consumption
  • Requires only one input matching inductor and one supply decoupling capacitor
  • Input and output DC decoupled
  • ESD protection on all pins (HBM > 2 kV)

Size

  • 1.1 mm x 0.7 mm x 0.37 mm; 0.4 mm pitch: SOT1232
  • 180 GHz transit frequency - SiGe:C technology
  • Integrated matching for the output
  • Integrated temperature stabilized bias for easy design

Buy Options

OM7895-Image

Click to expand

OM7895
No Longer Manufactured

BGU8020 GNSS LNA evaluation board.
