Demoboard for BGA3018, 5 MHz to 300 MHz 18 dB gain reverse amplifier application

OM7864 Active

Roll over image to zoom in

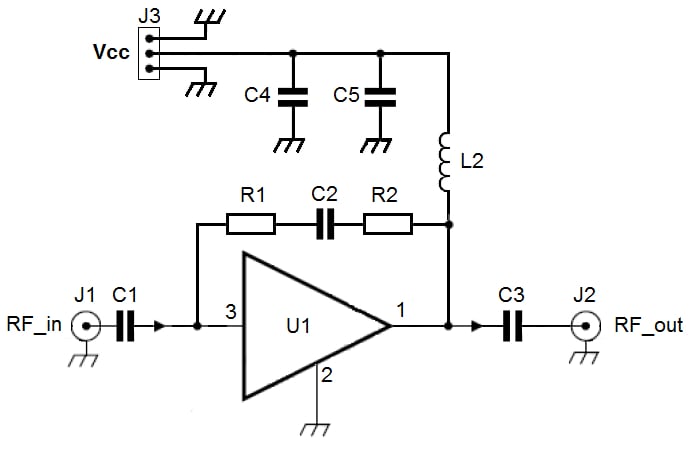

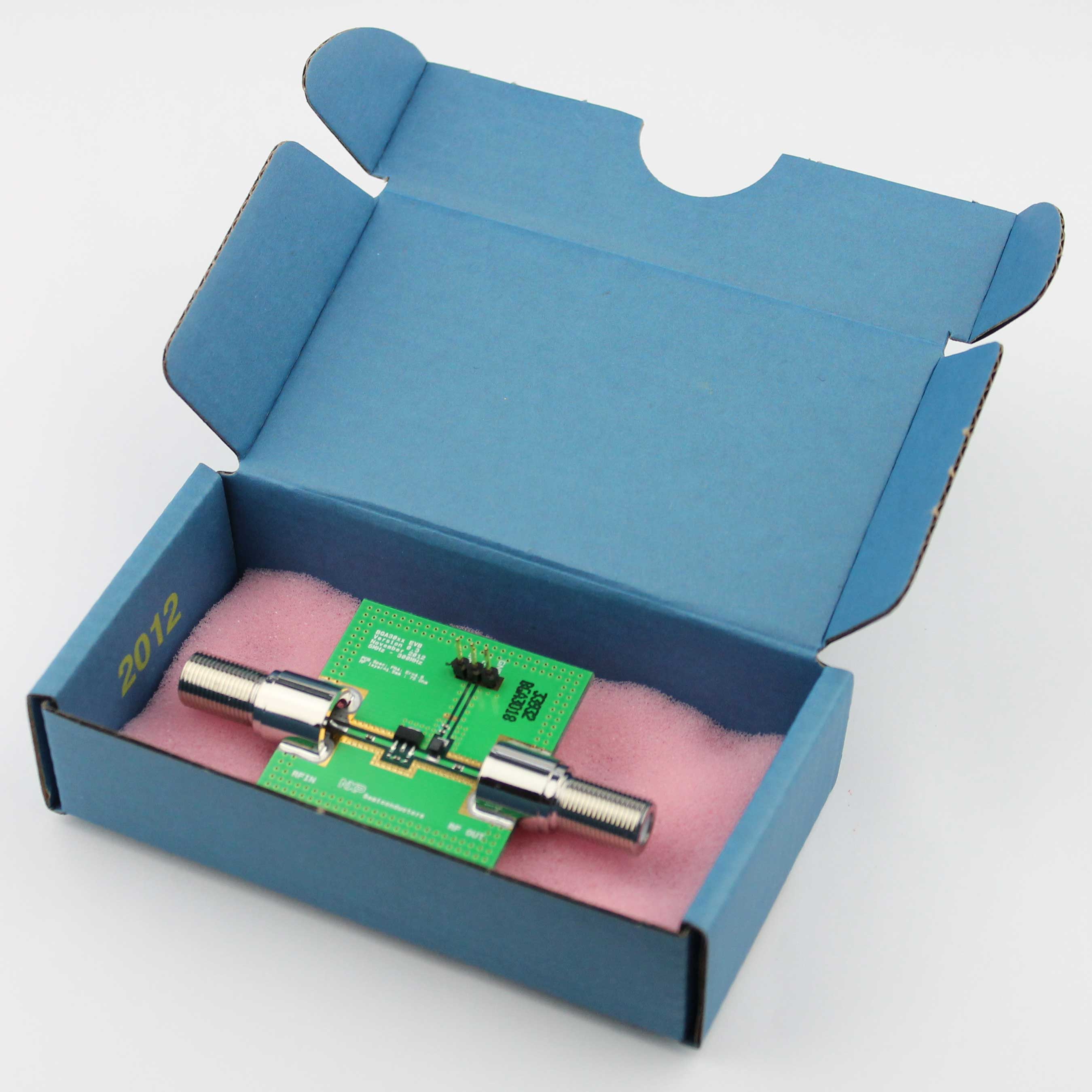

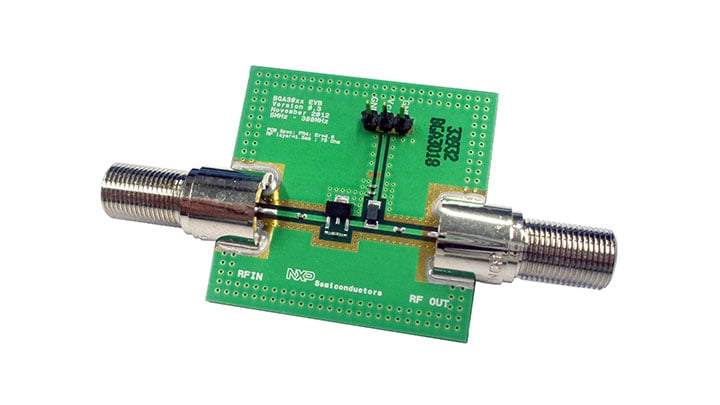

The BGA3018 CATV drop amplifier kit simplifies the evaluation of the BGA3018 wideband amplifier. It contains a RF board matched to 75 Ohm from 5 MHz up to 300 MHz with F-connectors. The board operates between 5 V and 8 V. The kit also provides BGA3018 samples for prototyping, device models and product documentation.

Supported Devices

Products

No Longer Manufactured

  • BGA3018: 1 GHz 18 dB Gain Wideband Amplifier MMIC

Features

  • Evaluation of electrical DC and RF performance like IDC, S-Parameters, Distortion levels, P-1 dB, Noise Figure
  • Device Models and S-parameters
  • PCB layout evaluation

Buy Options

OM7864-Image

Click to expand

  • OM7864

  • Demoboard for BGA3018, 5 MHz to 300 MHz 18 dB gain reverse amplifier application.

    • RF board matched according to datasheet specification
    • BGA3018 samples
  • $160.00 USD
  • For a quantity of 1
