AFV10700H|700 W Pulse, 960-1215 MHz, 52 V

Product Details

Features

Internally input and output matched for broadband operation and ease of use
The device can be used single-ended, push-pull, or quadrature configuration
Qualified up to a maximum of 55 V_DD operation
High ruggedness, handles > 20:1 VSWR
Integrated ESD protection with greater negative gate-source voltage range for improved Class C operation and gate voltage pulsing
Recommended drivers: MRFE6VS25N (25 W) or MRF6V10010N (10 W)
RoHS Compliant

RF Performance Tables

Typical Performance

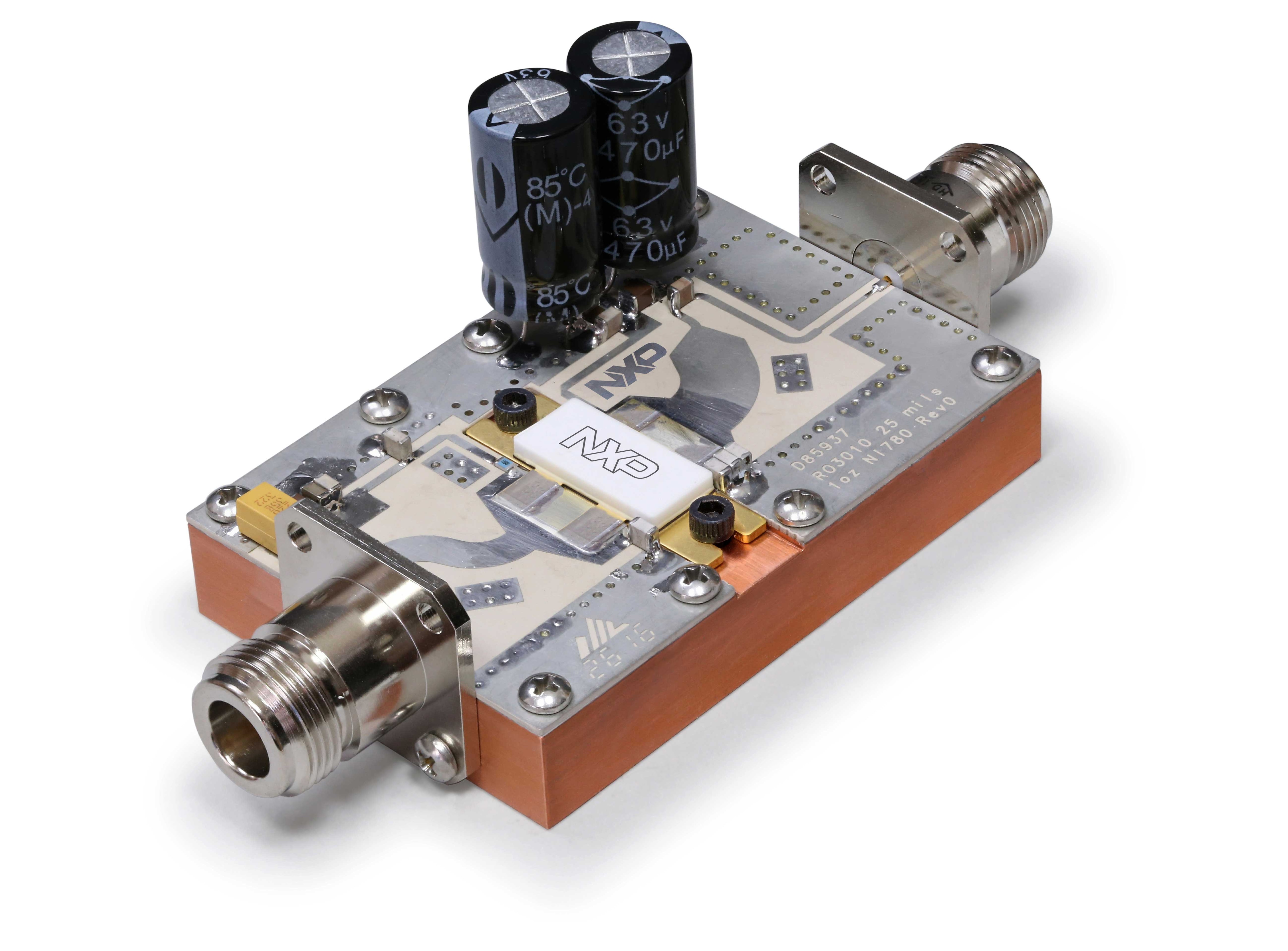

In 1030-1090 MHz reference circuit, I_DQ(A+B) = 100 mA

Frequency (MHz) ⁽¹⁾	Signal Type	V_DD (V)	P_out (W)	G_ps (dB)	η_D (%)
1030	Pulse (128 µsec, 10% Duty Cycle)	50	800 Peak	17.5	52.1
1090		50	700 Peak	19.0	56.1
1030		52	850 Peak	17.5	51.7
1090		52	770 Peak	19.2	56.1

Typical Performance

In 960-1215 MHz reference circuit, I_DQ(A+B) = 100 mA

Frequency (MHz) ⁽¹⁾	Signal Type	V_DD (V)	P_out (W)	G_ps (dB)	η_D (%)
960	Pulse (128 µsec, 4% Duty Cycle)	50	747 Peak	16.7	50.8
1030			713 Peak	16.5	49.7
1090			700 Peak	16.5	47.1
1215			704 Peak	16.5	54.5

Typical Performance

In 1030 MHz narrowband production test fixture, I_DQ(A+B) = 100 mA

Frequency (MHz)	Signal Type	V_DD (V)	P_out (W)	G_ps (dB)	η_D (%)
1030 ⁽²⁾	Pulse (128 µsec, 10% Duty Cycle)	50	730 Peak	19.2	58.5

Narrowband Load Mismatch/Ruggedness

Frequency (MHz)	Signal Type	VSWR	P_in (W)	Test Voltage	Result
1030 ⁽²⁾	Pulse (128 µsec, 10% Duty Cycle)	> 20:1 at all Phase Angles	17.2 Peak (3 dB Overdrive)	50	No Device Degradation

1. Measured in 1030-1090 MHz reference circuit.
2. Measured in 1030 MHz narrowband production test fixture.

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

N true 0 PSPAFV10700Hen 5 Data Sheet Data Sheet t520 1 Package Information Package Information t790 3 Technical Notes Technical Notes t521 1 en_US en_US en Data Sheet Data Sheet 1 1

2

English

AFV10700H 700 W Pulse over 960-1215 MHz, 52 V Airfast® RF power LDMOS transistor for avionics applications

1496055876931728358095 PSP

2.5 MB

None

documents

None

1496055876931728358095

/docs/en/data-sheet/AFV10700H.pdf

2506696

/docs/en/data-sheet/AFV10700H.pdf

AFV10700H

documents

N

2017-05-29

AFV10700H 700 W Pulse, 960-1215 MHz, 52 V Data Sheet

/docs/en/data-sheet/AFV10700H.pdf /docs/en/data-sheet/AFV10700H.pdf

Data Sheet

N

980000996212993340

2024-03-13

pdf N

en

Aug 8, 2019

980000996212993340

Data Sheet

Y

N

AFV10700H 700 W Pulse, 960-1215 MHz, 52 V Data Sheet

Technical Notes Technical Notes 1 2

0

English

This document explains the format used by NXP® for presenting LDMOS impedance information for both single-ended and push-pull devices on RF Power datasheets.

1074535848819727693421 PSP

171.0 KB

None

documents

None

1074535848819727693421

/docs/en/engineering-bulletin/EB212.pdf

170979

/docs/en/engineering-bulletin/EB212.pdf

EB212

documents

N

2016-11-09

Using Data Sheet Impedances for RF LDMOS Devices

/docs/en/engineering-bulletin/EB212.pdf /docs/en/engineering-bulletin/EB212.pdf

Technical Notes

N

389245547230346745

2024-09-13

pdf N

en

Jan 19, 2004

389245547230346745

Technical Notes

Y

N

Using Data Sheet Impedances for RF LDMOS Devices

Package Information Package Information 3 3

C

English

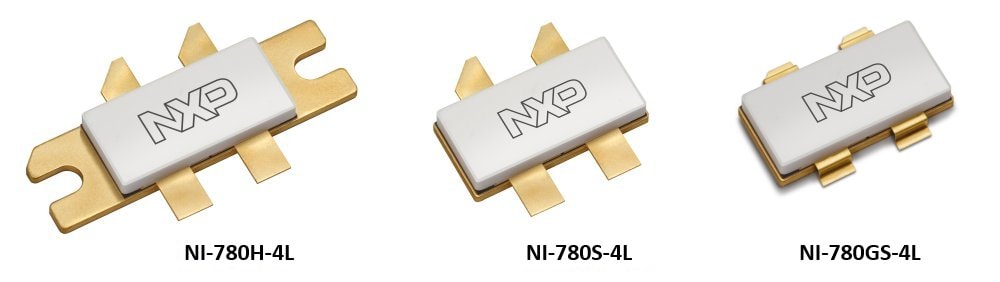

98ASA10718D, 465H-02, NI-780S-4L
