Low Noise Amplifier MMIC for GPS, GLONASS, Galileo and Compass

BGU6009

The BGU6009/N2 is, also known as the GPS1002M, a Low-Noise Amplifier (LNA) for GNSS receiver applications in a plastic leadless 6-pin, very thin small outline SOT1230 package. The BGU6009/N2 requires only one external matching inductor and one external decoupling capacitor.

See product image

Product Details

Select a section:

Features

  • Covers full GNSS L1 band, from 1559 MHz to 1610 MHz
  • Noise figure = 0.9 dB
  • Gain 17 dB
  • High input 1 dB compression point Pi(1dB) of -4 dBm
  • High out of band IP3i of 7 dBm
  • Supply voltage 1.5 V to 3.1 V
  • Power-down mode current consumption < 2 μA
  • Optimized performance at low supply current of 5.1 mA
  • Integrated matching for the output
  • Requires only one input matching inductor and one supply decoupling capacitor
  • Input and output DC decoupled
  • ESD protection on all pins (HBM > 2 kV)
  • Integrated temperature stabilized bias for easy design
  • Small 6-pin leadless package 1.1 mm x 0.9 mm x 0.47 mm; 0.4 mm pitch: SOT1230
  • Covers full GNSS L1 band, from 1559 MHz to 1610 MHz
  • Noise figure = 0.9 dB
  • Gain 17 dB
  • High input 1 dB compression point Pi(1dB) of -4 dBm
  • High out of band IP3i of 7 dBm
  • Supply voltage 1.5 V to 3.1 V
  • Power-down mode current consumption < 2 μA
  • Optimized performance at low supply current of 5.1 mA
  • Integrated matching for the output
  • Requires only one input matching inductor and one supply decoupling capacitor
  • Input and output DC decoupled
  • ESD protection on all pins (HBM > 2 kV)
  • Integrated temperature stabilized bias for easy design
  • Small 6-pin leadless package 1.1 mm x 0.9 mm x 0.47 mm; 0.4 mm pitch: SOT1230

    • LNA for GPS, GLONASS, Gallileo and COMPASS (Beidou).

    LNA for GPS, GLONASS, Gallileo and COMPASS (Beidou).

    Design Resources

    Select a section:

    Documentation

    Quick reference to our documentation types.

    Filters

    3 documents

    Design Files

    Filters

    1 design file

    Hardware

    Filters

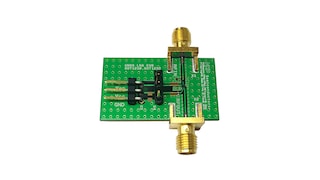

    1 hardware offering
