WLAN LNA + Switch

Product Details

Select a section:

Block Diagram

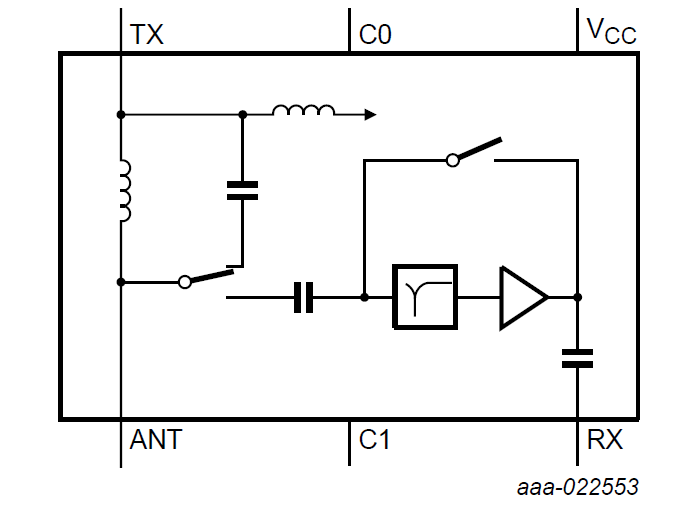

BGS8458 Functional diagram

BGS8458 Functional diagram

Features

  • Covers full ISM high band 4900 MHz to 5925 MHz
  • Noise figure = 2.4 dB
  • Gain 13.5 dB
  • High input 1 dB compression point Pi(1dB) of 0 dBm
  • High out of band IP3i of 9 dBm
  • Supply voltage 2.7 V to 5.25 V
  • Bypass mode current consumption of 3.5 μA
  • Optimized performance at low supply current of 10.7 mA
  • Integrated concurrent 2.4 GHz notch filter
  • 3 modes of operation (high gain receive, bypass receive, and transmit modes)
  • Integrated matching for input and output
  • Requires only one supply decoupling capacitor
  • ESD protection on all pins (HBM > 2 kV)
  • Small 6-pin leadless package 1.2 mm × 1.4 mm × 0.32 mm; 0.4 mm pitch
