Single-Pole Double-Throw (SPDT) Switch

See product image

Product Details

Select a section:

Block Diagram

SA630 Block Diagram

SA630 Block Diagram

Features

  • Wideband (DC to 1 GHz)
  • Low through loss (1 dB typical at 200 MHz)
  • Unused input is terminated internally in 50 Ω
  • Excellent overload capability (1 dB gain compression point +18 dBm at 300 MHz)
  • Low DC power (170 µA from 5 V supply)
  • Fast switching (20 ns typical)
  • Good isolation (off channel isolation 60 dB at 100 MHz)
  • Low distortion (IP3 intercept +33 dBm)
  • Good 50 Ω match (return loss 18 dB at 400 MHz)
  • Full ESD protection
  • Bidirectional operation

Target Applications

  • Digital transceiver front-end switch
  • Antenna switch
  • Filter selection
  • Video switch
  • FSK transmitter

Design Resources

Select a section:

Documentation

Quick reference to our documentation types.

1-5 of 6 documents

Show All

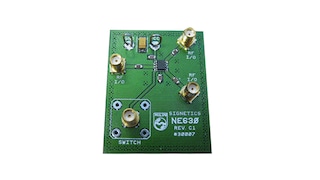

Hardware
