Assembler Development Suite for the 8-Bit MICRO RISC KERNEL (MRKII)

OM6710 No Longer Manufactured

Roll over image to zoom in

The OM6710 (Ride7) is the Raisonance brand integrated development environment (IDE), designed for the development of MRK II projects from beginning to end. The RKit-MRK plug-in for Ride7 provides the tools necessary to build MRK II-based projects:

  • Toolchain (Assembler and linker) for building applications.
  • OM6713/USB Hardware debugger for debugging with U-DDB board.

Product Details

Block Diagram

Ride 7 GUI Diagram

Ride7 GUI Diagram
Get diagram PDF

Features

OM6710

  • (Ride7) integrated development environment
    • Software Development Environment
    • Includes Code Editor, Assembler, and Linker
    • Full-featured Simulator for MRKII Core
    • Uses hardware debugging with OM6713/USB
    • operate on Windows 8 (32 and 64 bit), Windows 7 (32 and 64-bit), Windows Vista (32 and 64-bit), and Windows XP SP3 (32-bit only)

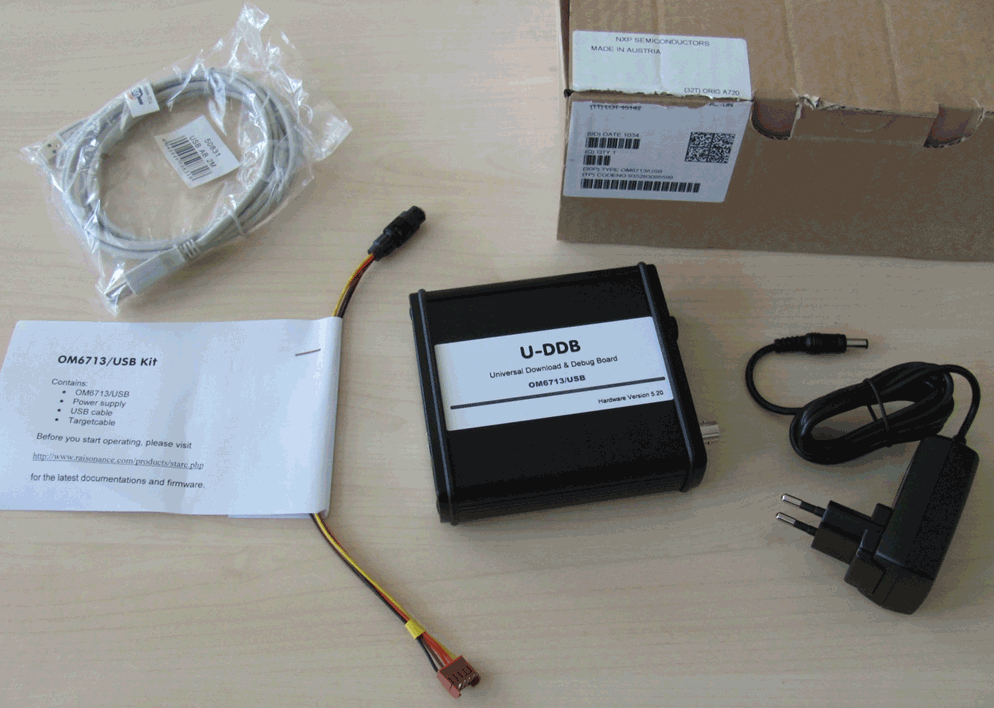

OM6713/USB

  • (U-DDB, Universal Download and Debug Board) Hardware Debugger
    • Cost-effective interface device
    • Full-featured In-System Debugging
    • In-System Programming / Downloading
    • Communicates with Host PC running application software (OM6710 [Ride7], EDDC)
    • Communicates with MRKII derivate via on-chip Monitor and Download Interface (MDI)

EDDC

  • (Easy Device Download and Configuration) Command-Line Tool
    • Download function for Erase / Program E_ROM and EEPROM
    • LOck / Protect devise

Buy Options

OM6710-Image

Click to expand

  • OM6710
    No Longer Manufactured

  • Integrated Development Enviroment (Ride7), Full Feature Simulator for MRKII Core.

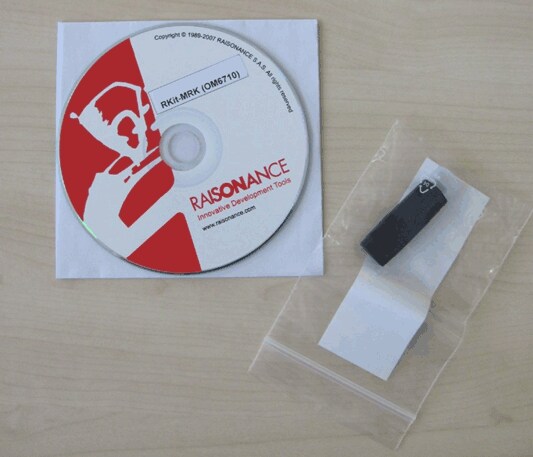

    • OM6710 (Ride7)
    • USB key License dongle
    • Software CD
    • RKit-MRK license delivery information
    • Target Interface Cable (connection cable from U-DDB to Target Board)
    • Power Supply (9VDC/300 mA)
    • USB Cable
    OM67100-Image

    Click to expand

    • OM67100

    • The Moulded Coil is part of the resonance antenna circuit of vehicle Immobilization applications (e.g. PCF7936AA).

      OM67101-Image

      Click to expand

      • OM67101
        No Longer Manufactured

      • Assembler Development Suite for the 8-Bit MICRO RISC KERNEL (MRKII).

        OM67102-Image

        Click to expand

        • OM67102
          No Longer Manufactured

        • Assembler Development Suite for the 8-Bit MICRO RISC KERNEL (MRKII).

          OM67103-Image

          Click to expand

          • OM67103
            No Longer Manufactured

          • Assembler Development Suite for the 8-Bit MICRO RISC KERNEL (MRKII).

            OM6713-Image

            Click to expand

            • OM6713
              End of Life

            • U-DDB, Universal Download & Debug Board Hardware Debugger.

            • $805.00 USD
            • For a quantity of 1
