Evaluation Board for MC33665A with CAN FD Gateway and TPL Communication

FRDM665CANFDEVB

Roll over image to zoom in

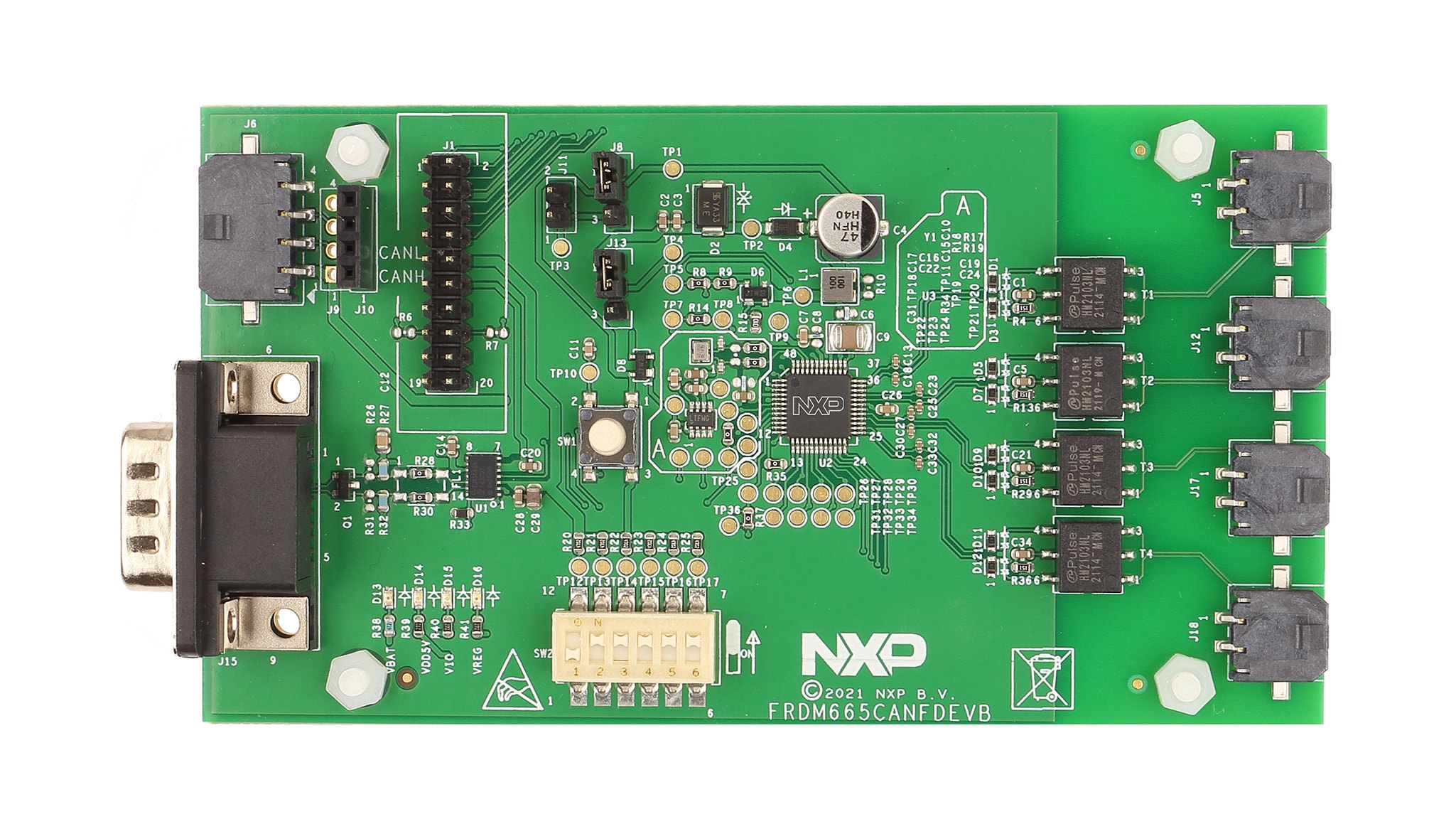

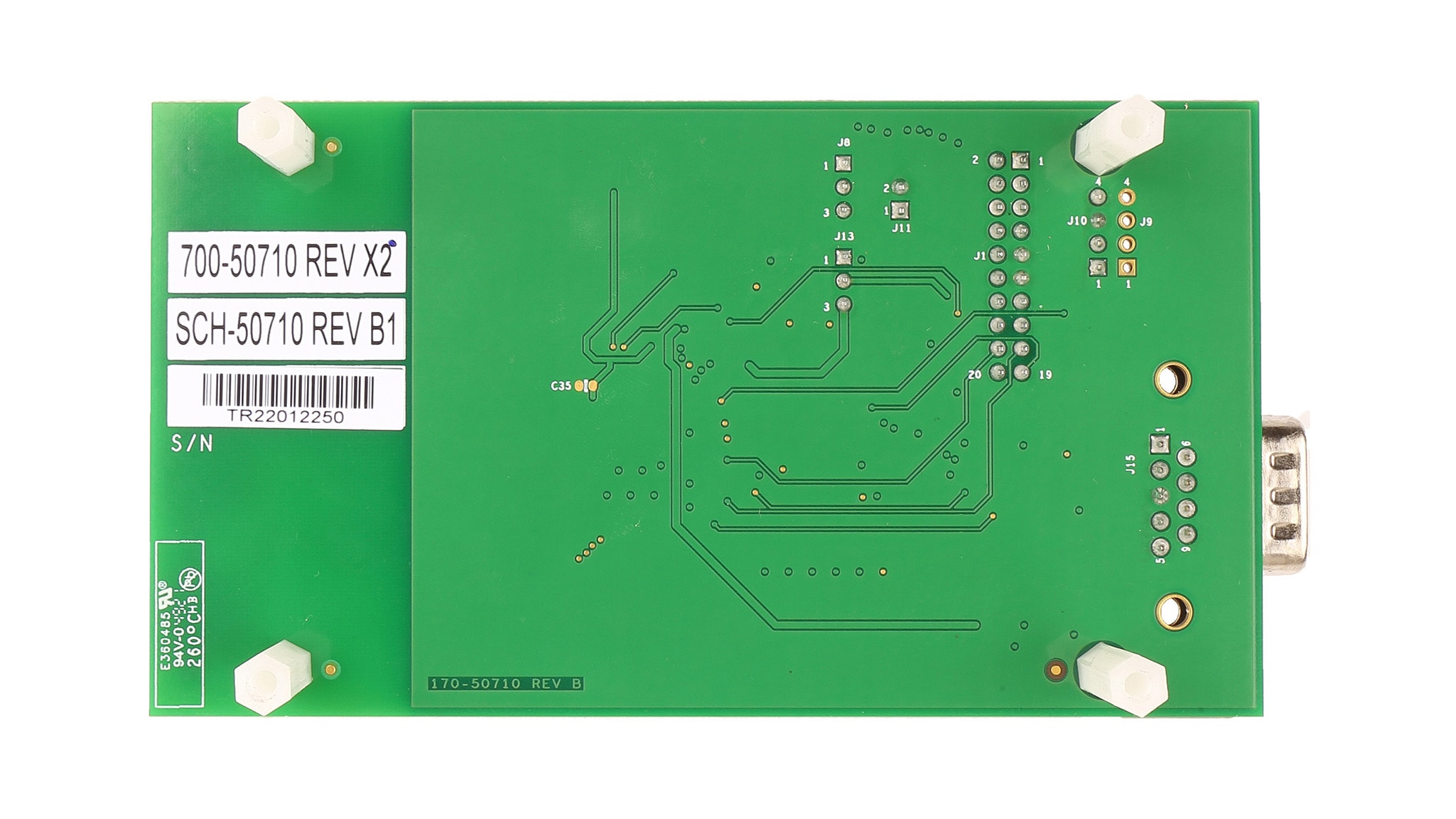

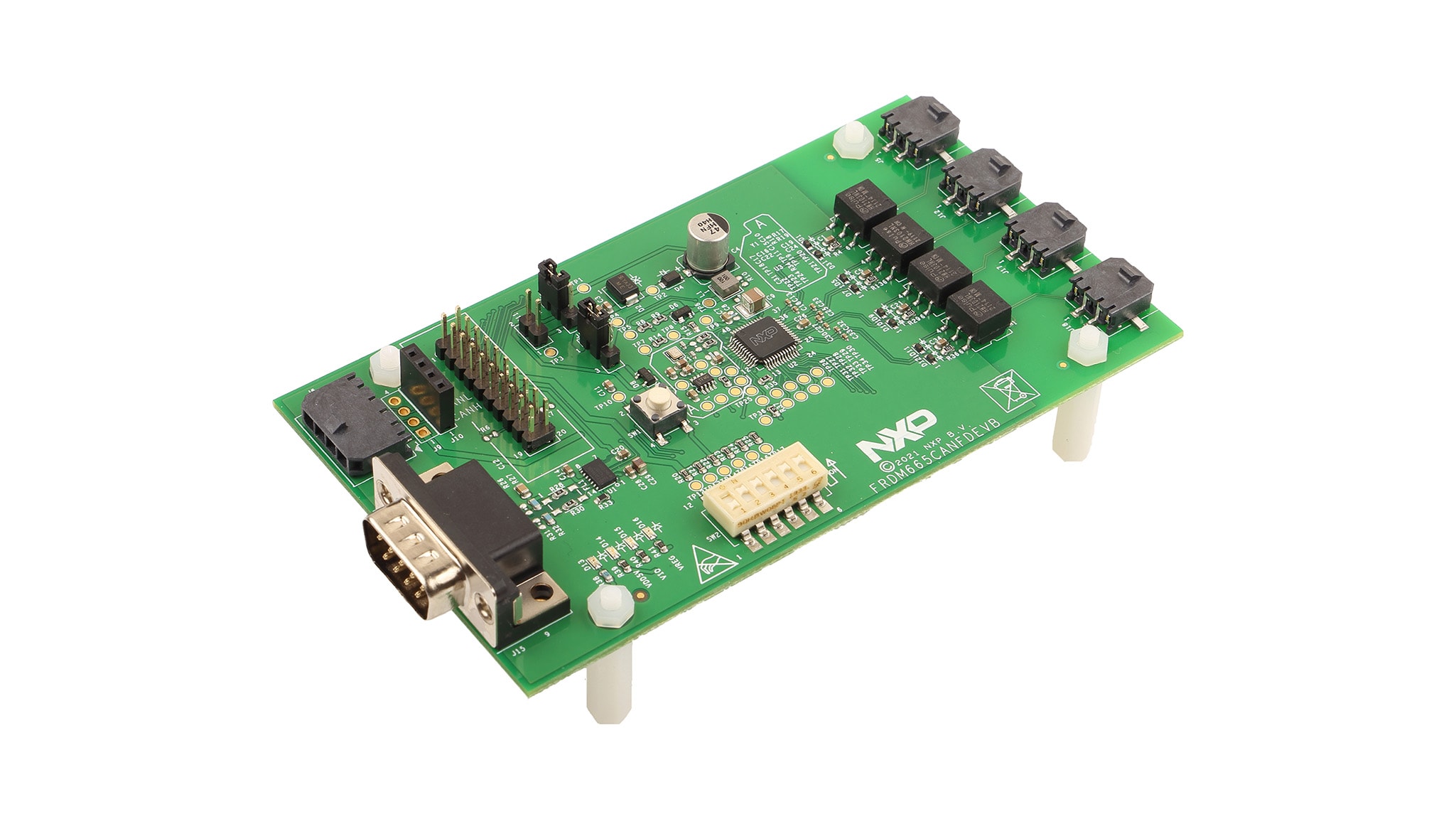

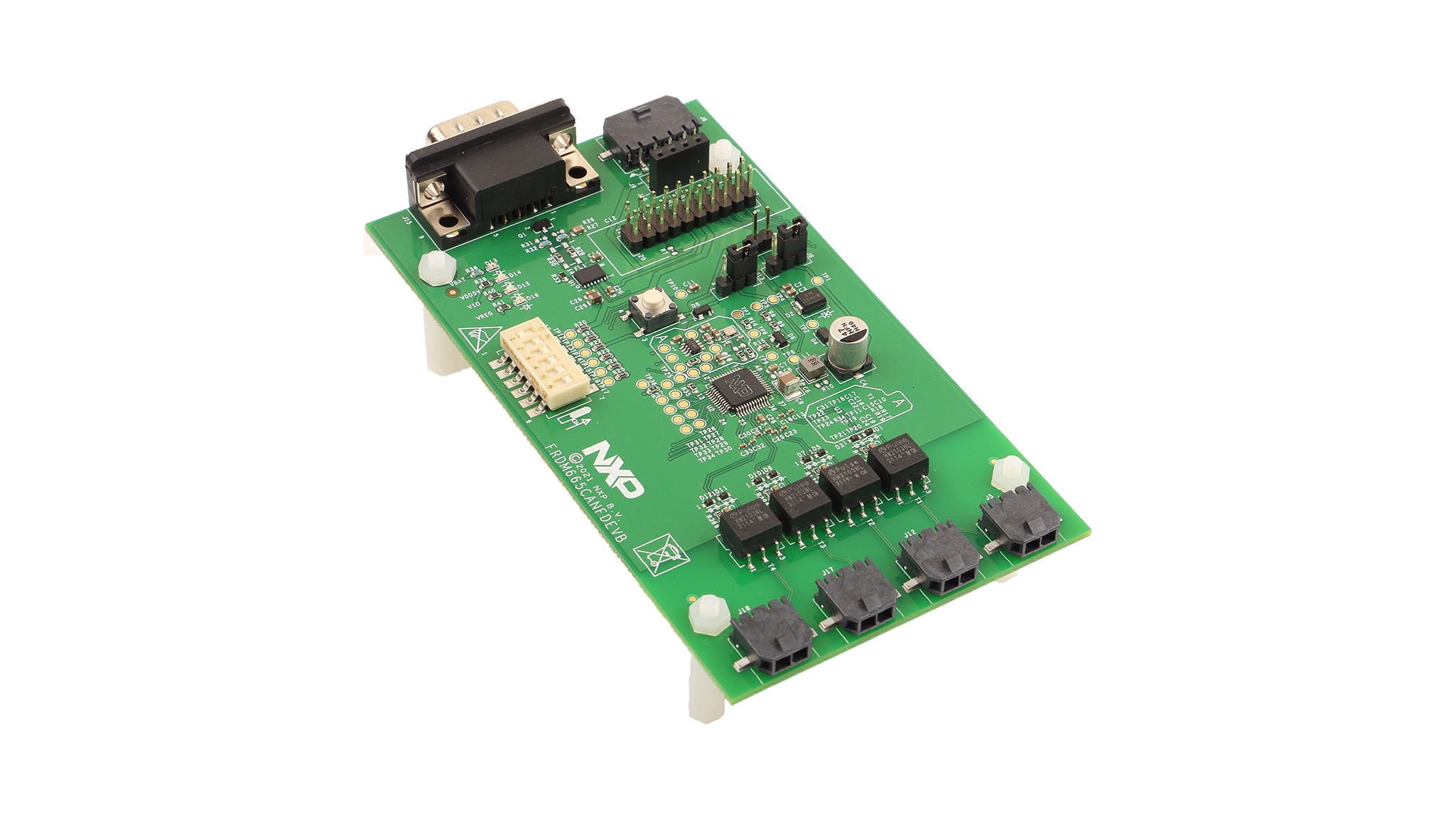

The FRDM665CANFDEVB serves as a hardware evaluation tool in support of the MC33665A BMS from NXP. The MC33665A is a gateway router that can route TPL messages from the microcontroller (MCU) to four different TPL ports. It is designed for use in both automotive and industrial applications. The device can route both TPL2 and TPL3 messages. The FRDM665CANFDEVB is an ideal board for rapid prototyping of the MC33665A for CAN or CAN FD interface to MCUs. Onboard TPL interface for four TPL ports has transformer isolation.

Supported Devices

Power Management

Battery Communication ICs

  • MC33665A: General Purpose BMS Communication TPL Transceiver and CAN FD Gateway

Features

Connectivity

  • CAN FD communication (5 Mbit/s of data)
  • TPL Communication (2 Mbit/s)
  • 20 pin connector for GPIO and I²C interface

LED Indicator

  • VBAT
  • VDD5V
  • VREG
  • VIO

Control

  • DIP switch to configure CFG and ID pins
  • Jumpers to configure VDDIO
  • Reset switch to control MC33665A

MC33665A

  • CAN or CAN FD to 4 x TPL communication
  • 8 GPIO pins (2 pins configurable for I²C)

TJA1443

  • High-speed CAN FD transceiver up to 5 Mbit/s
  • Compliant to ISO 11898-2:2016, SAE J2284-1 to -5 and SAE J1939-14

Buy Options

FRDM665CANFDEVB-Image

Click to expand

  • FRDM665CANFDEVB
    Active

  • Evaluation Board for MC33665A with CAN FD Gateway and TPL Communication.

  • Kit contains

    • Assembled and tested FRDM665CANFDEVB board in an anti-static bag

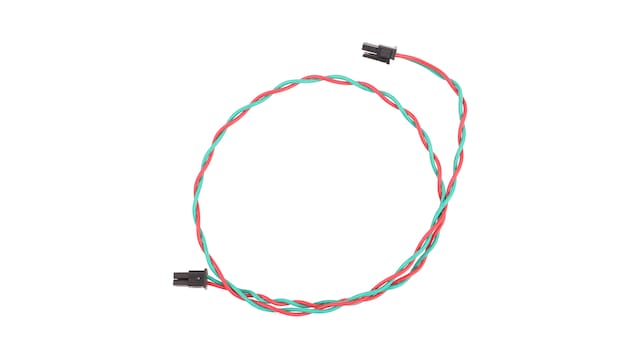

    • TPL cable 50 cm
    • Power cable
  • $301.30 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE20-Image

Click to expand

  • BATT-TPLCABLE20
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE50-Image

Click to expand

  • BATT-TPLCABLE50
    Active

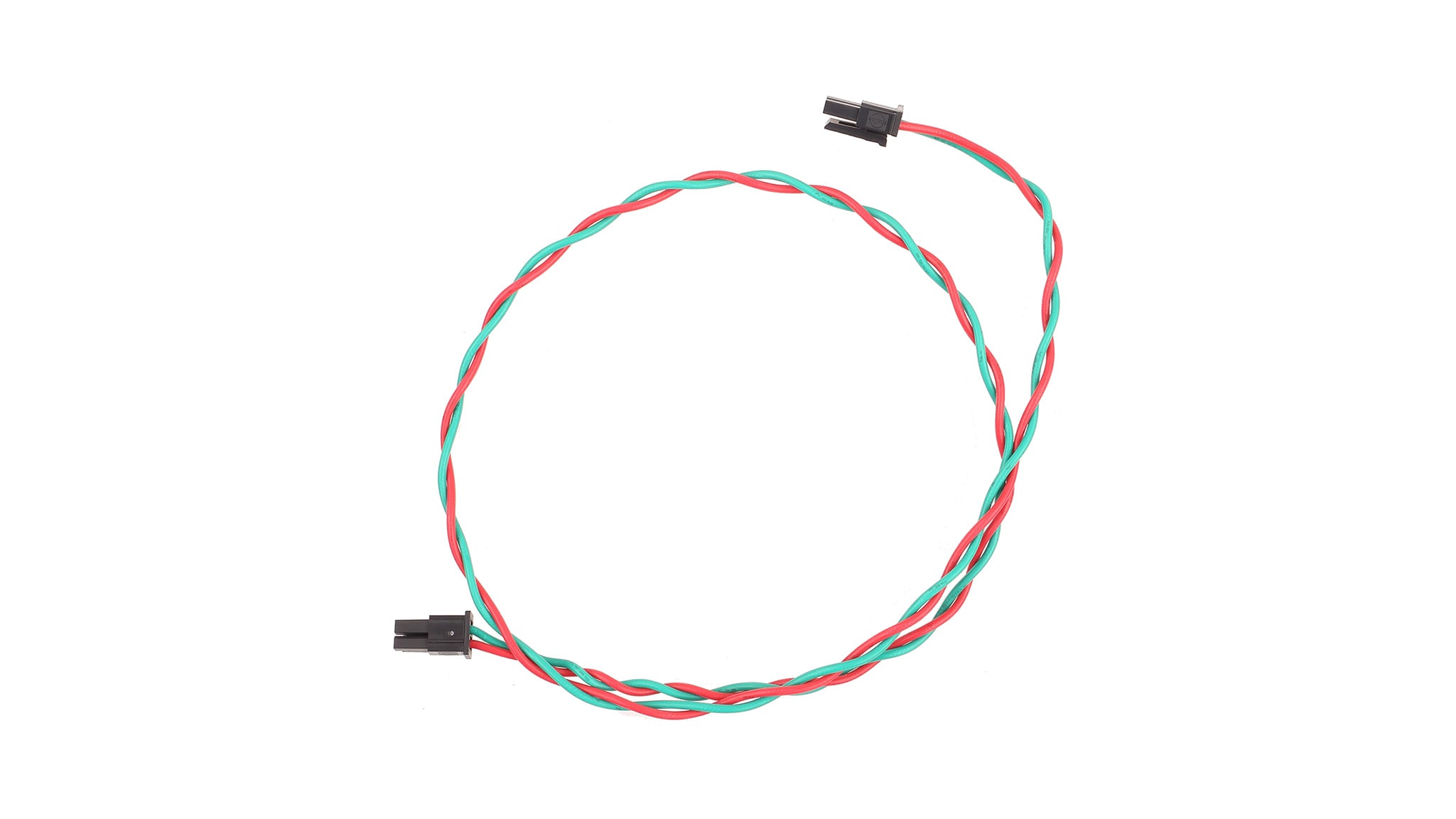

  • Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
