Evaluation Kit - MC33932EK, Dual 5 A Throttle Control

KIT33932EKEVBE Active

Roll over image to zoom in

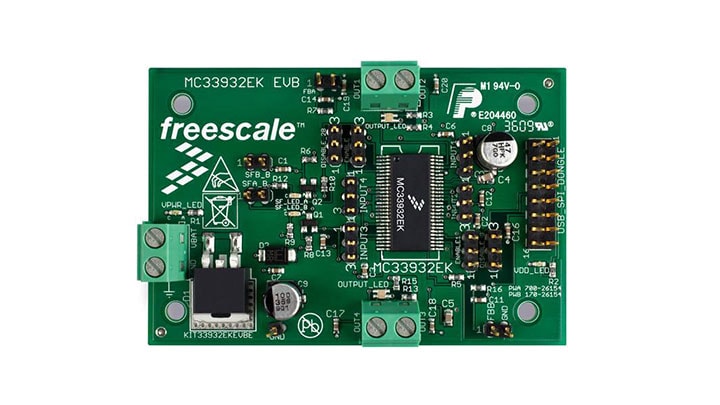

This Evaluation Kit is for the NXP® MC33932EK, a monolithic H-Bridge Power IC in a robust thermally enhanced package.

The MC33932 has two independent monolithic H-Bridge Power ICs in the same package, designed primarily for automotive electronic throttle control, but are applicable to any low-voltage DC servo motor control application within the current and voltage limits stated in this specification.

This Evaluation kit may be used with the KITUSBSPIDGLEVME.

Product Details

Supported Devices

BLDC, H-Bridge, Stepper

  • MC33931: H-Bridge, Brushed DC Motor Driver, 5-28 V, 5 A, 11 kHz

Powertrain and Engine Control

  • MC33932: H-Bridge Motor Driver, 5-28 V, 5 A, 11 kHz

Features

Connectivity

  • 3.0 V and 5.0 V TTL / CMOS logic compatible inputs

Power Management

  • 8.0 to 28 V continuous operation (transient operation from 5.0 to 40 V)
  • Output short-circuit protection (short to VPWR or GND)
  • Overcurrent limiting (regulation) via internal constant-off-time PWM
  • Temperature-dependant current-limit threshold reduction
  • Sleep mode with current draw < 50 μA (each H- Bridge)

General Specifications

  • 235 mΩ maximum RDS(ON) @ 150 °C (each H-Bridge MOSFET)
  • All inputs have an internal source/sink to define the default (floating input) states
