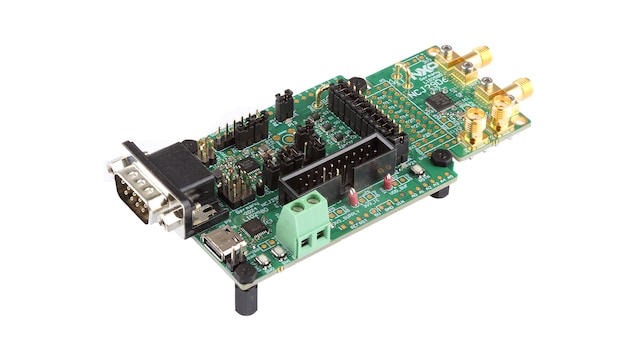

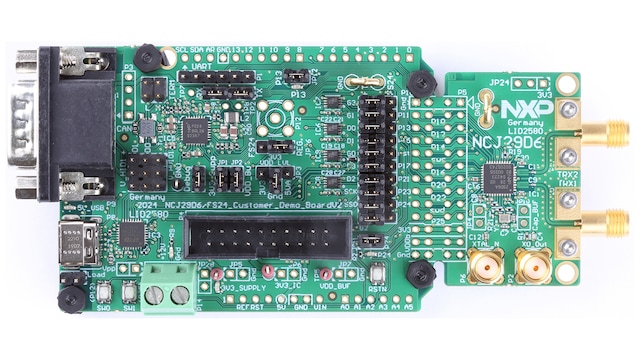

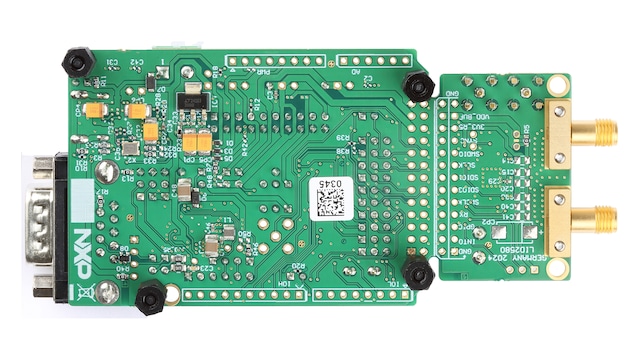

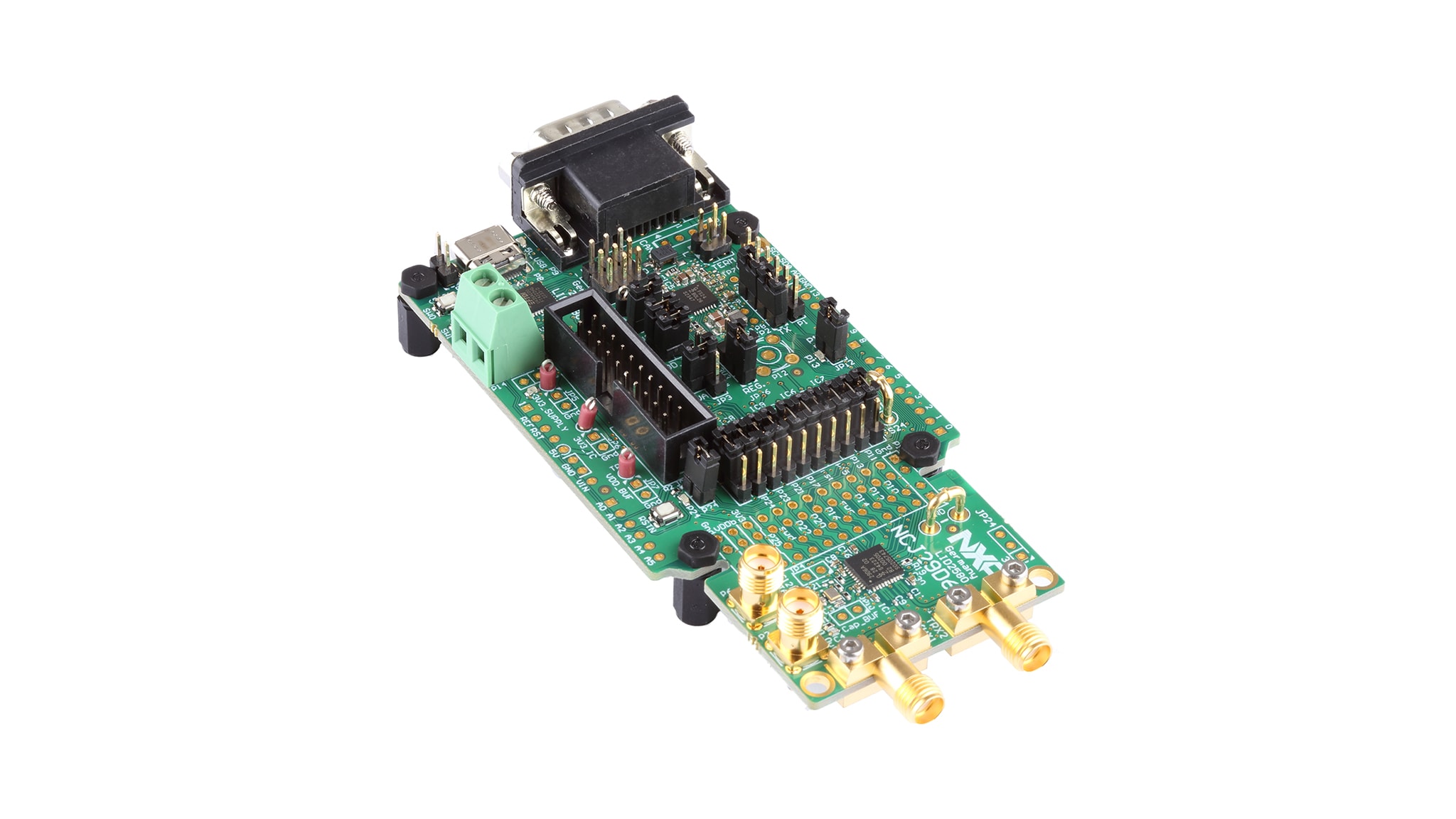

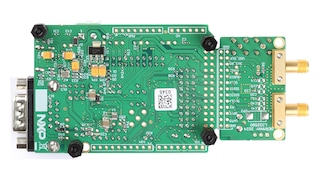

Trimension™ NCJ29D6 Evaluation Board for Automotive Ultra-Wideband

Roll over image to zoom in

Block Diagram

LID2580

LID2580 Block Diagram

Supported Devices

Wireless Connectivity

Trimension® UWB

Features

NCJ29D6

  • Secure ranging for smart access
  • Radar
  • Angle of arrival
  • Arm® Cortex®-based
  • Lowest system cost
  • Integrated power management
  • UWB CH5, CH6, CH8 and CH9
  • IEEE 802.15.4z forward and backward-compatible

Antenna

  • SMA connectors for separate antennas

Connectivity

  • Various expansion headers (for example, UART, SWD)
  • USB-C to host PC
  • CAN to connect to a CAN bus network

FS24

  • CAN transceiver, switch mode regulator, watchdog circuit and other features

Buy Options

LID2580-NCJ29D6-Image

Click to expand

  • LID2580-NCJ29D6
    Active

  • Trimension™ NCJ29D6 Evaluation Board for Automotive Ultra-Wideband.

  • $149.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 28
    • Shipping: Normally ships 1-2 business days
