MR-HGK-RT Unmanned Aerial Vehicle Robotics Reference Design

MR-HGK-RT new
Active

Roll over image to zoom in

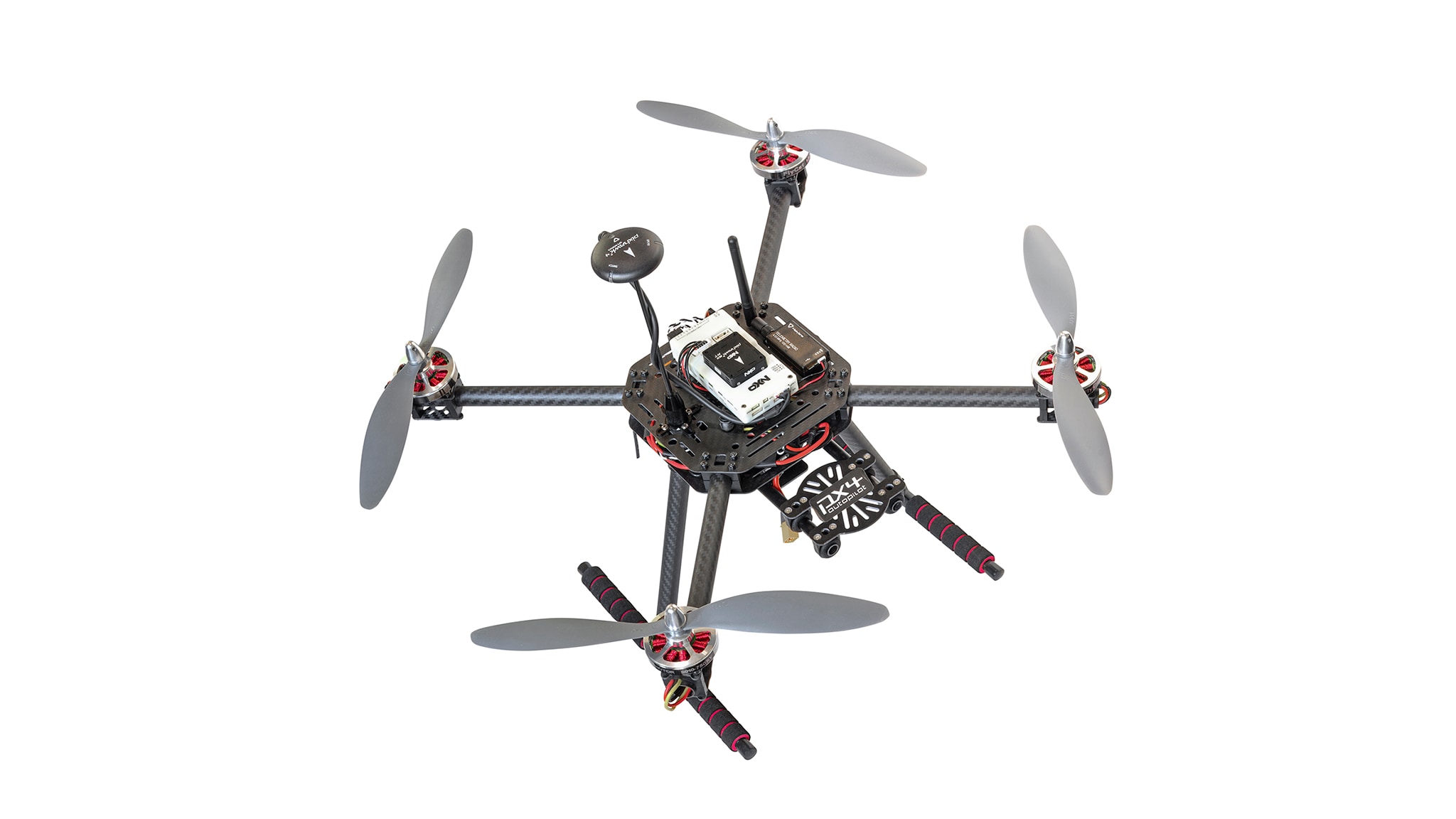

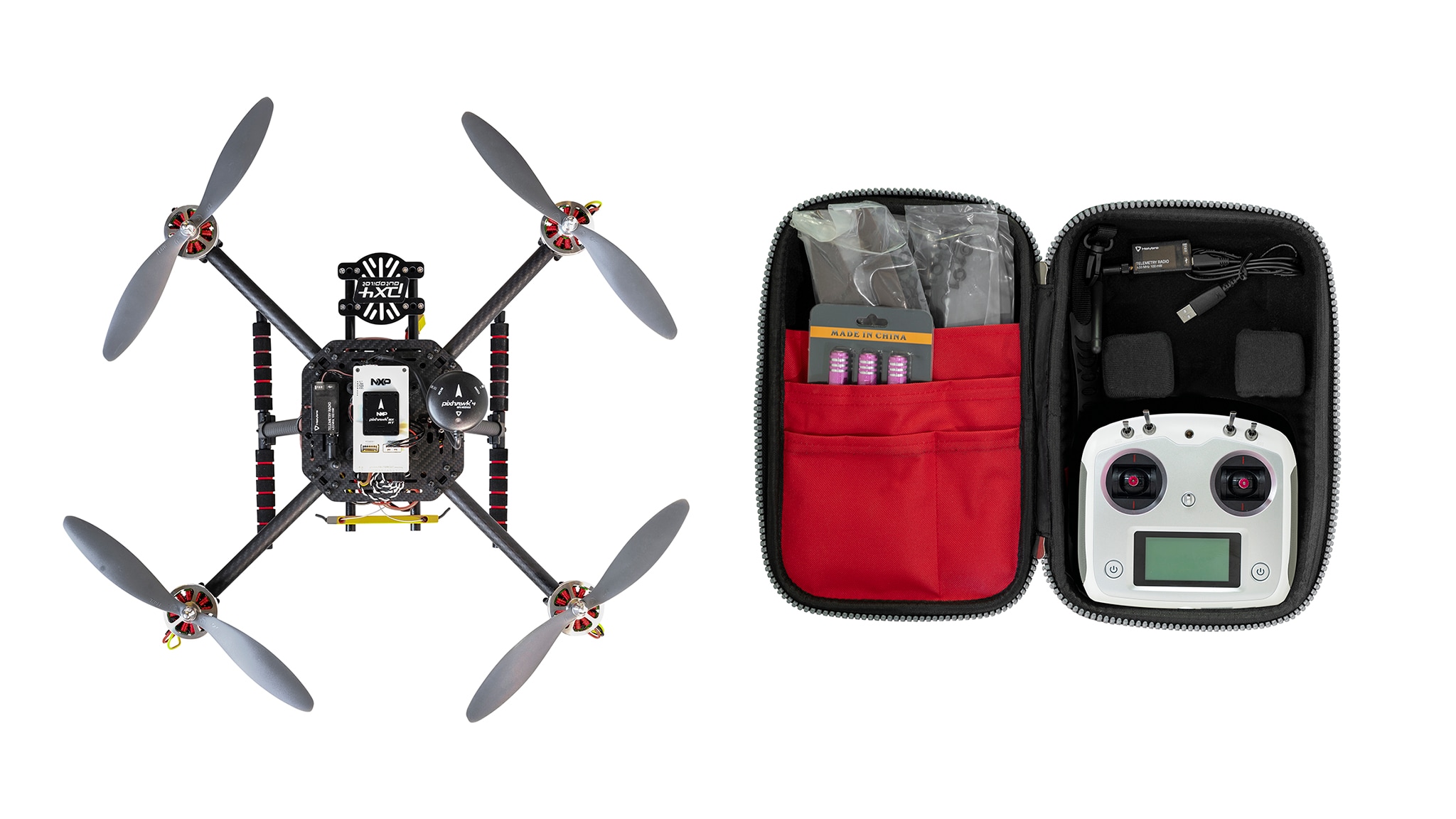

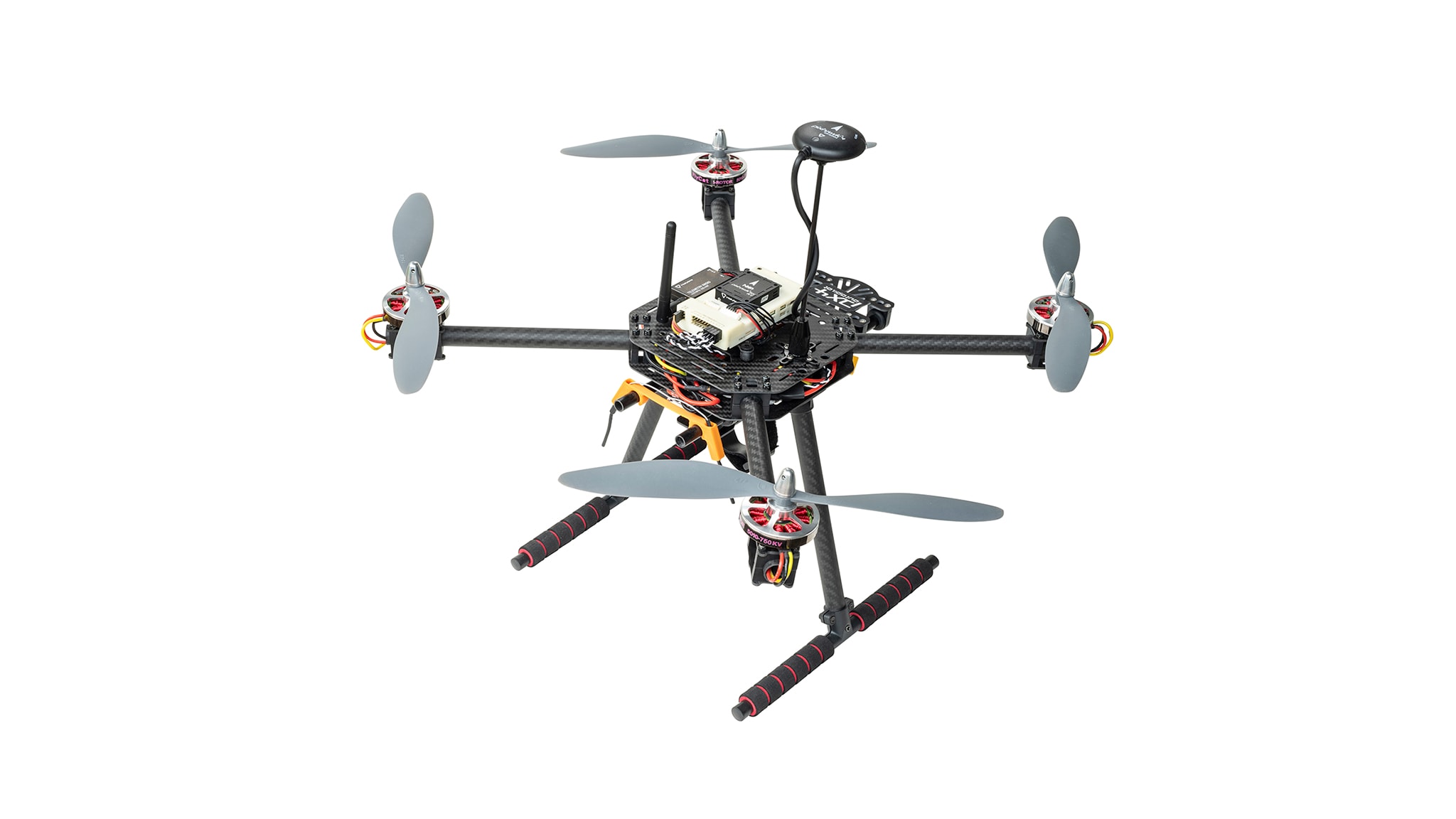

The MR-HGK-RT NXPHoverGames Kit UAV Robotics Reference Design combines the MR-VMU-RT1176 real-time vehicle management unit with modular hardware to self-assemble a drone. It supports the PX4 flight stack, Zephyr RTOS and Cognipilot, enabling flexible development in control, communications and autonomous systems. The platform integrates BLDC motor controllers, power distribution, networking and expansion support for components like NavQPlus, RTK-GPS and telemetry radios. This design accelerates prototyping for UAVs and robotic systems.

Block Diagram

Choose a diagram:

Drone System

Real-Time Vehicle Management Unit Block Diagram

Real-Time Vehicle Management Unit

Drone System Block Diagram

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1170: i.MX RT1170: 1 GHz Crossover MCU with Arm® Cortex® Cores

Features

Core components

  • Dual-core Arm® Cortex-M7/M4 i.MX RT1176 Crossover MCU

Vehicle and robotics connectivity

  • 100Base-T1 Ethernet, triple CAN FD (SIC), UART, SPI, I²C, USB-C

Flight and actuator control

  • 12 PWM outputs, RC S-BUS, bidirectional D-Shot support 1 Gbit/s

Sensing and navigation

  • Triple IMU, dual barometer, dual GPS interfaces

Modular and expandable

  • Supports NavQPlus companion computer and FRDM boards

Software ecosystem

  • PX4, Zephyr® RTOS, Cognipilot, MCUXpresso SDK

Buy Options

MR-VMU-RT1176-Image

Click to expand

MR-VMU-RT1176
Active

Real-Time Vehicle Management Unit (VMU).

    $300.00 USD
    Pending Stock
    ADD TO CART
