2-Channel Translator EV Board

P3A9606JK-EVB

Roll over image to zoom in

Easy to use board with mounted P3A9606JK allowing connections to I²C, I3C or SPI controllers or targets for voltage translation between 0.72 to 1.98 V

Supported Devices

Analog and Mixed Signal

Voltage Level Translators

  • P3A9606: 2-Bit Dual Supply Bidirectional I3C/I²C-Bus and SPI Voltage-Level Translator

Features

Versatile Voltage Level Translator

  • Signal in and out with voltage shift

Easy Set Up with DIP Switch

  • Jumpers enables signals and changes voltage

Mounted Device

  • Socket option – customer supplied

Buy Options

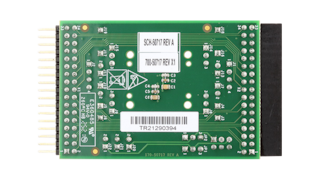

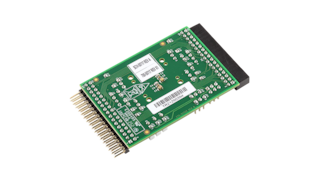

P3A9606JK-EVB-Image

Click to expand

  • P3A9606JK-EVB
    Active

  • 2-Channel Translator EV Board.

  • Kit Contains

    • Assembled and tested evaluation board in an anti-static bag
    • Quick Start Guide
  • $16.67 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
