Remote I/O Platform

REMOTE-IO-PLATFORM
Active

Roll over image to zoom in

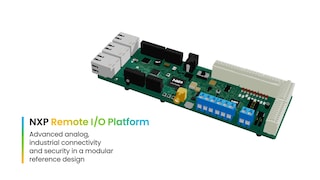

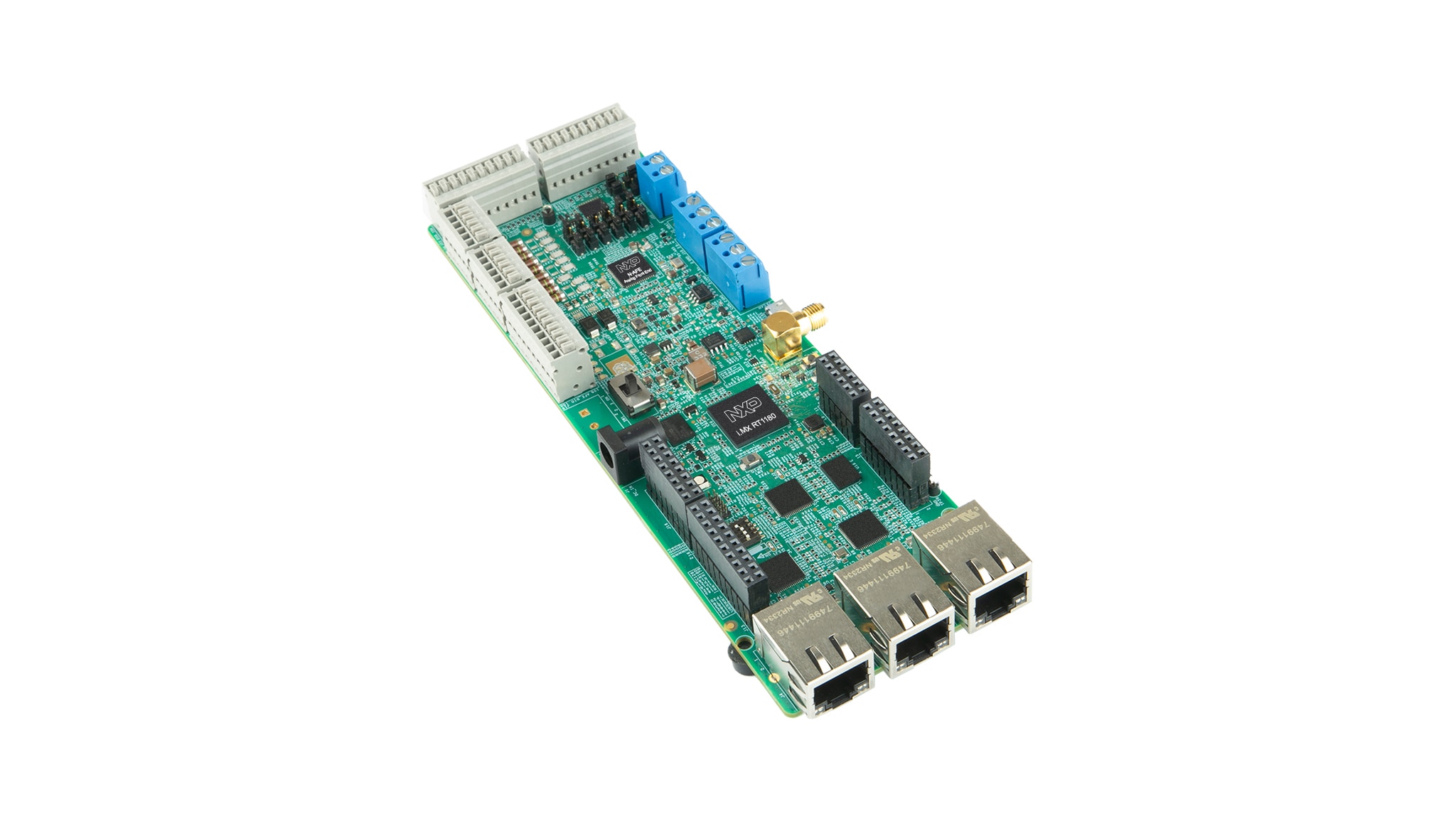

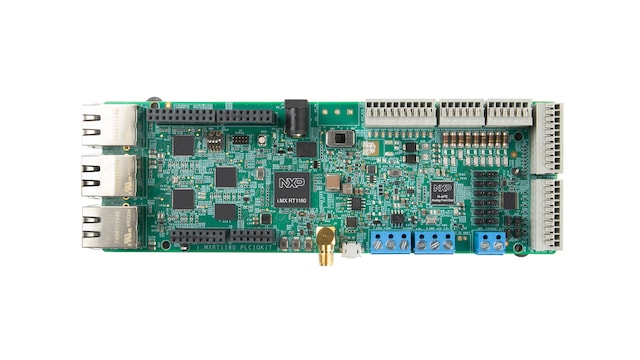

NXP's Remote I/O Platform (RIOP) accelerates industrial automation by delivering flexible, high-precision data acquisition and secure, multi-protocol connectivity for factory and process control systems. Designed to simplify integration into Industry 4.0 environments, RIOP supports predictive maintenance and helps optimize reliability and operational efficiency.

As a reference platform, it enables Ethernet-connected remote I/O for both analog and digital signals, while supporting leading industrial protocols such as EtherCAT and CAN alongside robust sensor front-ends. This solution is ideal for quick prototyping, lab setups, factory automation and applications requiring functional safety and instrumentation.

Block Diagram

Choose a diagram:

Remote I/O Platform Hardware

Remote I/O Platform Hardware Block Diagram

Remote I/O Platform Software

Remote I/O Platform Software Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1180: i.MX RT1180 Crossover MCU with TSN Switch and EdgeLock®

Analog and Mixed Signal

Analog Front-End

  • NAFEx3388: Highly Configurable 8/4 Channel 24/16 bits ±25 V Universal Input Analog Front-End with Excitation Sources

Features

High-Precision Analog Input

  • 8x Universal, software-configurable HV analog inputs
  • ±12.5 V Single-ended / ±25 V differential range
  • Overvoltage protection to ±36 V

Industrial Connectivity

  • Multi-protocol support: EtherCAT®, Time Sensitive Networking (TSN), CAN FD, RS485
  • 1 Gbit/s Ethernet endpoint
  • 2x 100 Mb Ethernet switch

Modular and Expandable

  • Arduino and FRDM board compatibility
  • Modular hardware for easy expansion
  • Ready to use libraries

Diagnostics and Safety

  • Built-in self-test and calibration
  • Diagnostics for enhanced anomaly detection, reliability and safety

Environmental Resilience

  • Operating temperature: -40 °C to +125 °C
  • 7.5 kV HBM ESD, IEC61000-4-5 2 kV surge protection
  • Integrated +/-3 °C accurate temperature sensor
  • On-board RTD

Integrated Security

  • EdgeLock Secure Enclave to support IEC 62443, the European Cyber Resilience Act (CRA) and the NIST Cybersecurity Framework (CSF)

Buy Options

PLCIOKIT-Image

Click to expand

PLCIOKIT
Active

Remote I/O Platform.

    $249.00 USD
    In Stock :7

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors

    Documentation

    Quick reference to our documentation types

    Filters

    4 documents

    Compact List

    Design Resources

    Design Files

    Quick reference to our design files types.
    Filters

    1 design file

    Software

    Quick reference to our software types.

    Filters

    1-5 of 6 software files

    • Application Example Software

      Remote I/O Platform – ECAT Sample Application

      EXTERNALRev 0Dec 17, 2025 12:58:00RIOP-APP-CODE-HUB-ECAT
      Download
    • Application Example Software

      Remote I/O Platform – Demo

      EXTERNALRev 0Dec 17, 2025 12:58:00RIOP-APP-CODE-HUB-DEMO
      Download
    • Examples and Quick Start Software

      MCUXpresso SDK - SDK Builder

      EXTERNALRev 1.0Mar 2, 2017 13:05:00MCUXPRESSO-SDK
      Download
    • Evaluation Packages

      RIOP EtherCat Application Glue

      ZIPRev 1.5Dec 19, 2025 16:40:0055.12 KBRIOP-ECAT-APP-GLUE-V1.5.0
      Account Required
      Download
    • Debugging and Visualization Tools

      FreeMASTER tool 3.2 (includes Lite 1.4) – Windows installer

      EXERev 3.2.6Nov 4, 2025 11:08:00334772 KBFMASTERSW
      Account Required
      Download
    Show All

    Note: For better experience, software downloads are recommended on desktop.
