Tower Board - SB0410, Quad Valve/Pump Controller SoC

TWR-SB0410-36EVB Active
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

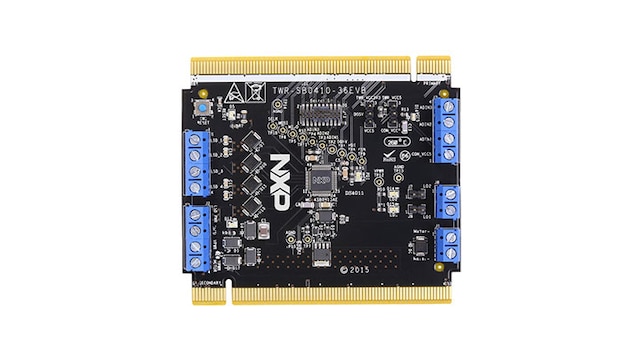

The TWR-SB0410-36EVB module is a development board illustrating the Quad Valve Controller SoC. The MC34SB0410 Octal Valve and Pump Controller System on Chip consists of four low-side drivers regulated/PWM and a high side pre-driver to control a DC motor.

  • The tower module provides rapid prototyping for industrial applications requiring high feature integration and safety features thanks to the embedded supervision.
  • The TWR-SB0410-36EVB can operate with any MCU tower board available on MCU and Processors modules and offering an easy plug and play system.

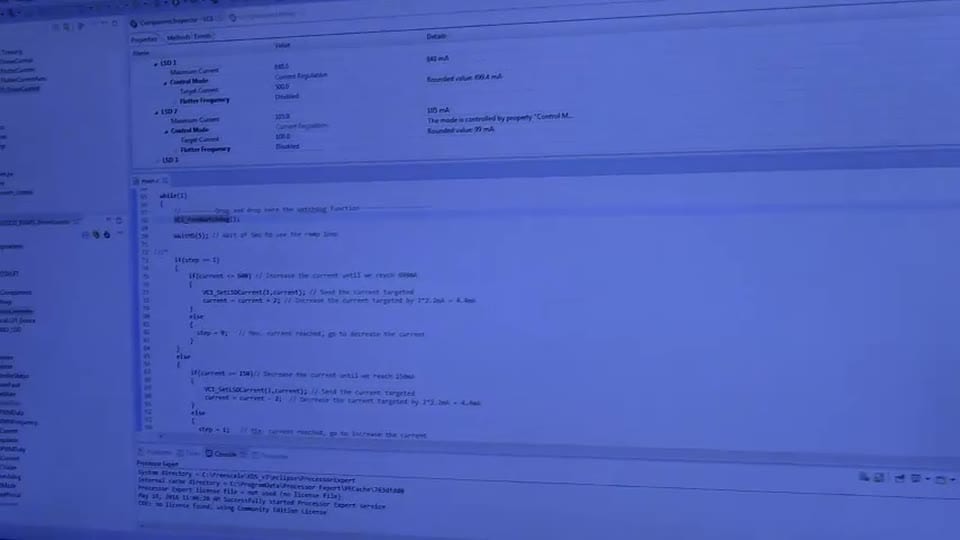

  • Processor Expert ® component Valve Driver and Embedded Software Valve Driver enables rapid embedded application development.

Supported Devices

Products

No Longer Manufactured

  • MC34SB0410: Quad Valve Controller System on Chip

Features

Connectivity

  • Small power Package LQFP48 pins

Power Management

  • x4 Low side drivers current regulated or PWM (5 A)

Peripheral

  • SPI communication (10 MHz)
  • x3 ADC input (10 Bits)

Drivers

  • x1 High side pre-driver for DC Motor (16 Khz)
  • x2 Low side drivers (general purpose)

Buy Options

TWR-SB0410-36EVB-Image

Click to expand

  • TWR-SB0410-36EVB
    Active

  • Evaluation Kit - SB0410, Solenoid/High Side predrivers, 4 CH / 1, 36 V, 2.25 A for LSD, 225 mOhms, 5 kHz.

    • TWR-SB0410-36EVB board
