Evaluation Kit - 33887, Inductive Load Driver

KIT33887EKEVBE
Active

Roll over image to zoom in

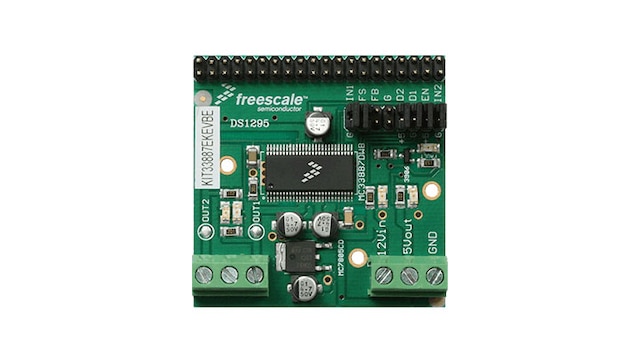

The KIT33887EKEVBE evaluation kit features the MC33887 monolithic power IC comprising control logic, charge pump, gate drive, and low RDS(on) MOSFET output H-Bridge circuitry contained in a small surface mount package.

  • Designed to drive inductive loads with RMS currents up to 5.2 A, in both directions
  • The current drive can be pulse width modulated (PWM) at frequencies up to 20 kHz
  • An internal current mirror circuit provides a proportional (1/375 th) sample of the output current, which may be used to provide feedback or load information to a MCU’s A/D input

Product Details

Supported Devices

BLDC, H-Bridge, Stepper

  • MC33886: H-Bridge, Brushed DC Motor Driver, 5-28 V, 5 A, 10 kHz
  • MC33887: H-Bridge, Brushed DC Motor Driver, 5-28 V, 5 A, 10 kHz

Features

Key Features

  • 120 mΩ RDS(ON) typical H-Bridge MOSFETs
  • PWM frequencies up to 10 kHz
  • Active current limiting (regulation)
  • Fault status reporting

Connectivity

  • TTL/CMOS compatible inputs

Power Management

  • Fully specified operation 5.0 V to 28 V
  • Limited operation with reduced performance up to 40 V
  • Sleep mode with current draw ≤50 μA (inputs floating or set to match default logic states)
