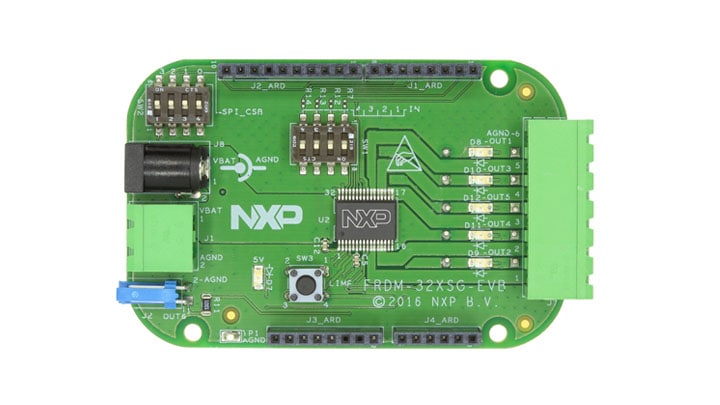

Freedom HW for MC17XSG500 Device

FRDM-32XSG-EVB
Preproduction

Roll over image to zoom in

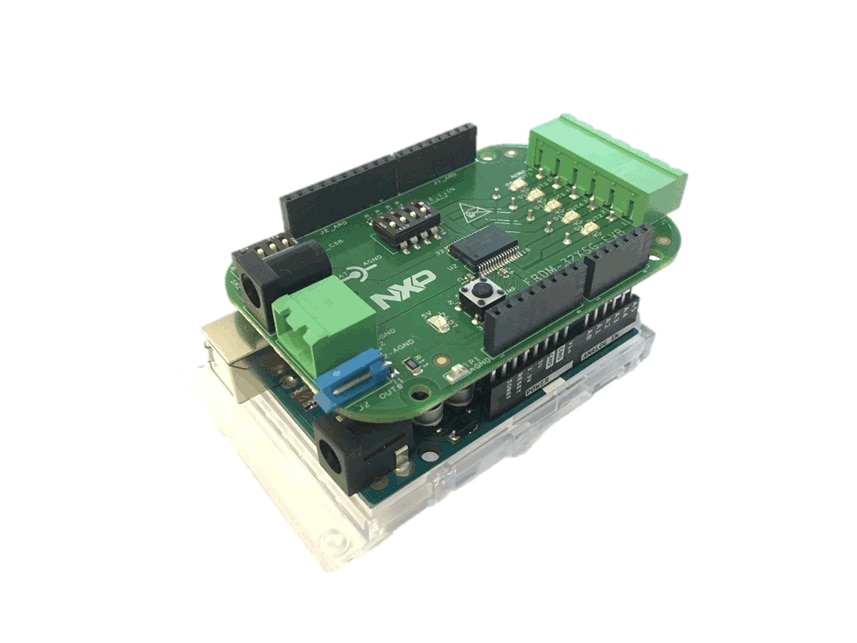

NXP's Freedom boards for MC32XSG family is a hardware tool for development with the MC17XSG500 associated with NXP Freedom boards or Arduino® Hardware. This device is a penta High Side switch that features integrated control with high flexibility and a high number of protection and diagnostic functions.

FRDM-32XSG-EVB is an easy to use solution for creating your own application that requires high power (protection at 11 A typical per channel) at low DC voltage (up to 32 V )

This board is is combined with the following interfaces:

  • Software drivers and example for Arduino®
  • Processor Expert components for the various Kinetis Freedom boards

Product Details

Supported Devices

Processors and Microcontrollers

KL Series Arm Cortex-M0+

  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

KV Series Arm Cortex-M4/M0+/M7

  • KV1x: Kinetis® KV1x-75 MHz,  Entry-Level 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M0+

Power Management

High Side Switches

  • MC32XSG: Industrial Multipurpose 32 V SPI-Controlled Smart Switch

Features

Key Features

  • This board can control various types of loads such as solenoids, PLC, DC motors, bulbs or LED
  • These devices are 16-bit 5.0 MHz SPI, control of overcurrent profiles, channel control including PWM duty-cycles, output-ON and -OFF OpenLoad detections, thermal shut-down and prewarning, and fault reporting
  • The device can be driven by the 16-bit SPI using:
    • Kinetis x Series Freedom boards using Processor eXpert Gen4eXtremeSwitch component using CodeWarrior 10.6 or Kinetis Design Studio v3.0 or higher
    • Arduino® Uno (all versions) and Leonardo
    • With direct input signals in fail-safe mode operation (switch on board)

Power Management

  • External smart power switch control Output current monitoring with programmable synchronization signal and battery voltage feedback
